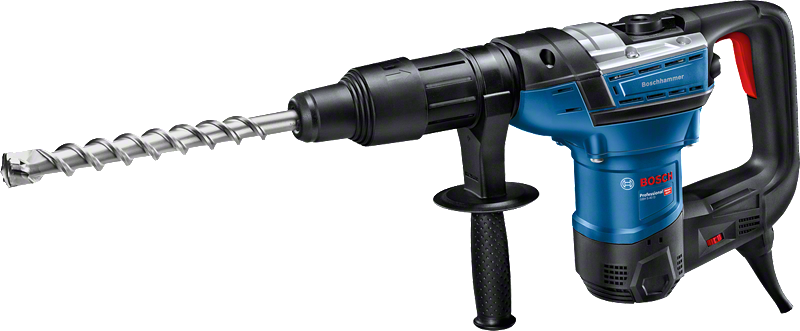

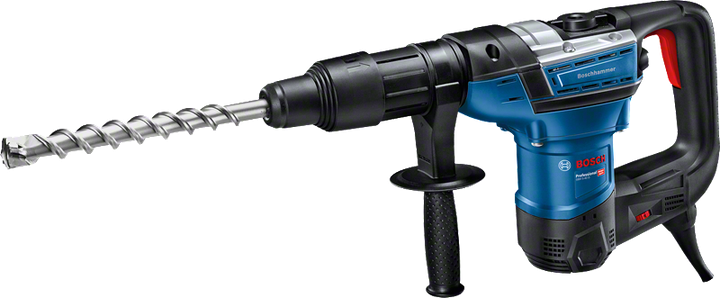

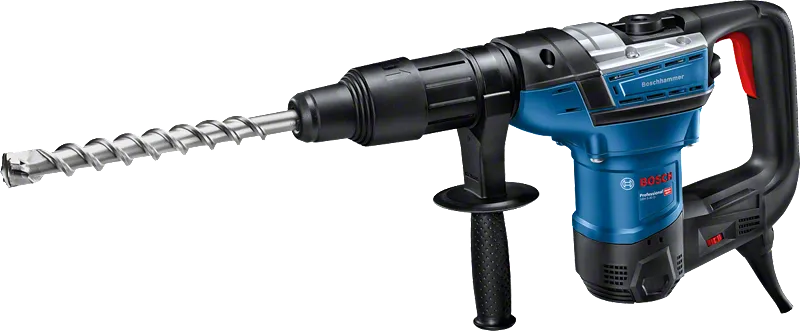

Rotary Hammer with SDS max GBH 5-40 D Professional
The powerful hammer with fastest drilling progress in its class
Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,100 W |
| Impact energy* | 8.5 J |
| Impact rate at rated speed | 1,500 – 2,900 bpm |
| Rated speed | 170 – 340 rpm |
| Weight | 6.8 kg |
| Tool holder | SDS max |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 12 – 40 mm |
| Drilling dia. concrete, breakthrough drill bits | 45 – 55 mm |
| Drilling diameter in concrete with core cutters | 40 – 90 mm |
| Max. drilling diameter masonry, core cutters | 90 mm |
| Max. drilling diameter concrete | 40 mm |
| Opt. appl. range concrete, hammer drill bits | 18 – 32 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 14 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 11.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93.5 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.
Advantages
The powerful hammer with fastest drilling progress in its class
- Fastest drilling progress – 30% faster than its predecessor
- High material removal rate – 50% more impact energy than existing GBH 5-38 D
- Perfect handling – well balanced tool for all applications
Functions
What’s Included in this Package
GBH 5-40 D Professional
Order number:
0 611 269 0L0
