X-LOCK is a new changing system to switch angle grinder accessories with just one click. The X-shaped interface of the grinders head and the accessory allows easy and effortless mounting.
Easy change of grinder accessories without any losable parts or additional mounting equipment – up to 5 times faster compared to conventional changing solutions.
We offer a huge range of grinders and accessories to cope with all kinds of tasks.
Directional accessories like diamond discs can’t be incorrectly mounted thanks to the innovative X-LOCK System.
To offer an even bigger X-LOCK accessory range, we are cooperating with several professional accessory manufacturers.

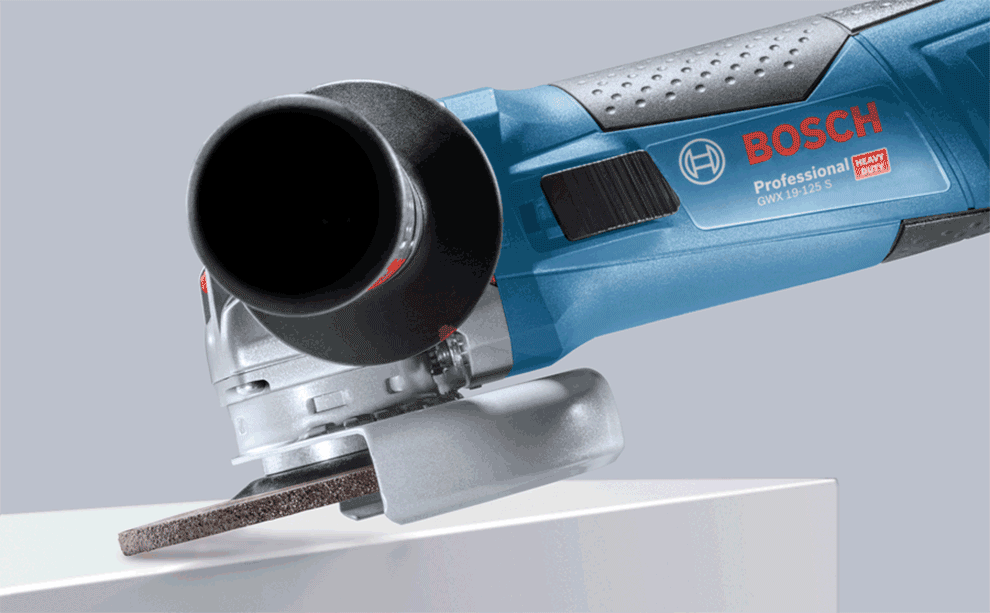

No nut to disturb you when working with angle grinders. Flat grinding is now possible, and surfaces will never get scratched.X-TRA CONVENIENT

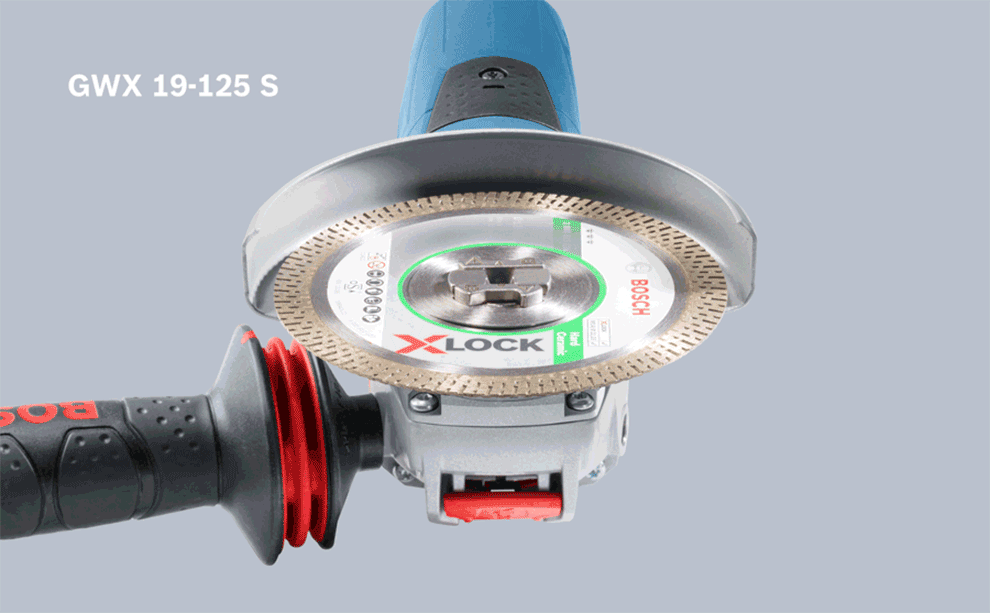

Almost every X-LOCK accessory fits on standard angle grinders. With over 130 accessories, you’re sure to get every job done.X-TRA COMPREHENSIVE
The audible 'click' means you always know the accessory is firmly attached to the tool and you can start your work with peace of mind. No reconsideration necessary.X-TRA RELIABLE
X-LOCK sets new standards in the market and convinces manufacturers of accessories all around the world. The X-LOCK assortment is constantly growing.
Bosch Professional is now providing a wide range of X-LOCK tools and accessories to deal with every application and user need.
Almost all X-LOCK accessories are compatible with conventional angle grinders. Exceptions are accessories that have threads, for example, diamond core bits and cup brushes.
Yes, the protective guards are compatible.
This is not possible, as the accessories require the appropriate X-LOCK mechanism.
No there will not be an adapter.
No, this is not possible due to the differing gear wheel geometry.
Yes, X-LOCK has successfully been put through several lifetime, as well as extreme durability tests.

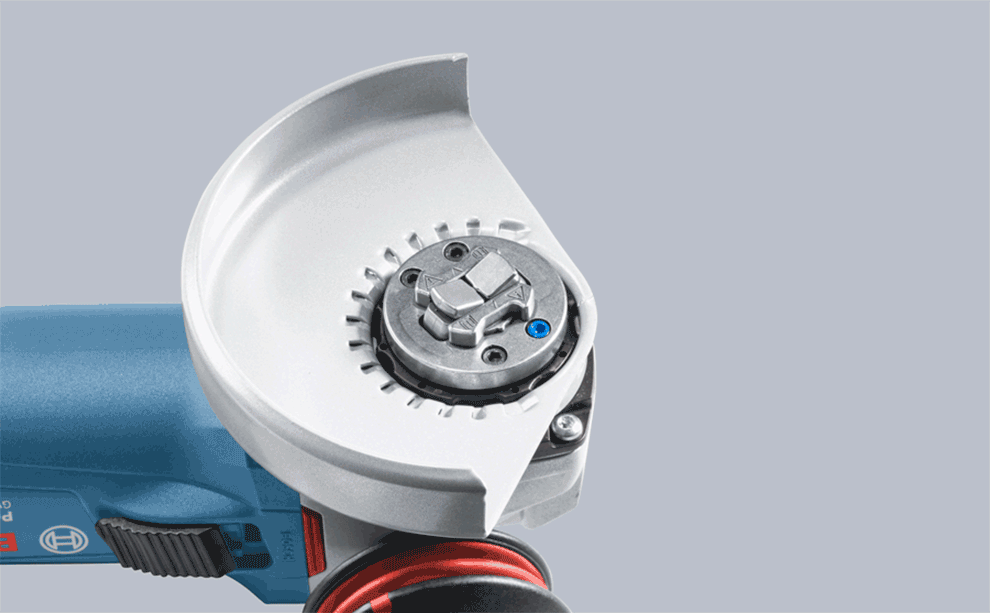

The unique X-LOCK mechanism ensures that the disc is properly mounted to the tool – even without flange, nut and spanner. By clicking on the disc, the clamping jaws and thus the system are locked.
The patented mechanism prevents opening while the machine is in use.
All cordless X-LOCK angle grinders are equipped with the extra fast breaking function “X-Brake”: this ensures that the disc halts within one second after each stop of the device – for increased user protection. Work is being done to find a corresponding solution for the corded angle grinders.
No, dust and dirt do not impair the X-LOCK mechanism. This was extensively tested under realistic conditions, as well as under extreme conditions in a dust chamber. Instructions for cleaning can be found in the operating instructions.
No, in contrast to GWS accessories, X-LOCK accessories are coded and cannot be mounted incorrectly.
The X-LOCK System offers solutions for all cutting and grinding work: cutting and grinding discs, abrasives, support plates, wire brushes, as well as diamond drills and diamond cutting discs.
Seven corded and four cordless models will be available worldwide. There will also be over 130 accessories. The X-LOCK-System includes a complete system program with diameters of 115 and 125 mm.
In general, other tools are possible and their realization is currently being evaluated.
The goal is to establish the X-LOCK system as the new market standard and then to reduce the number of angle grinders without X-LOCK. Until a corresponding market penetration is achieved, both systems will be offered.
The name is derived from the shape and function of the system: the X-LOCK mechanism has the shape of an “X” and the word “Lock” describes the function of the system.
X-LOCK will be available from specialist retailers in Germany, Austria and Switzerland as of May 2019. The launch for home improvement stores is planned for September 2019.
The prices are minimally higher for the tool and accessories.
Yes, all GWX were tested under the same conditions as the GWS.
For the launch of X-LOCK there will be accessories from the following manufacturers – many more companies will follow soon:
- August Rüggeberg GmbH & Co. KG, Germany
- DRONCO GmbH, Germany
- Husqvarna Group, Sweden
- Inter Abrasiv Co, Turkey
- Klaus Eiche Diamantwerkzeuge GmbH, Germany
- Osborn International GmbH, Germany
- Sundisc Abrasives, Netherlands
- TYROLIT Schleifmittelwerke Swarovski KG, Austria
- VSM - Vereinigte Schmirgel- und Maschinen-Fabriken AG, Germany
- WEILER ABRASIVES d.o.o., Slovenia
An additional, internationally operating power tool manufacturer will also launch X-LOCK angle grinders. Furthermore, Berner and BTI will also offer X-LOCK angle grinders.
