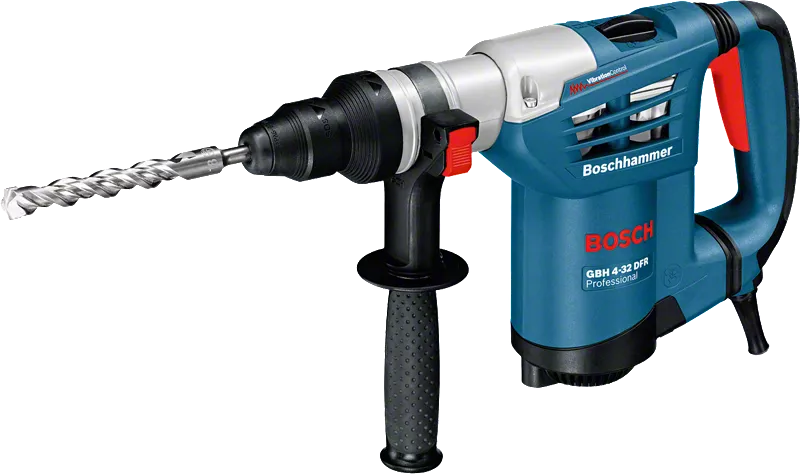

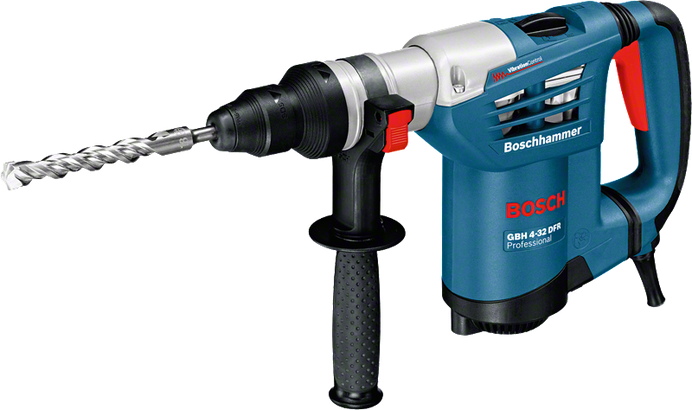

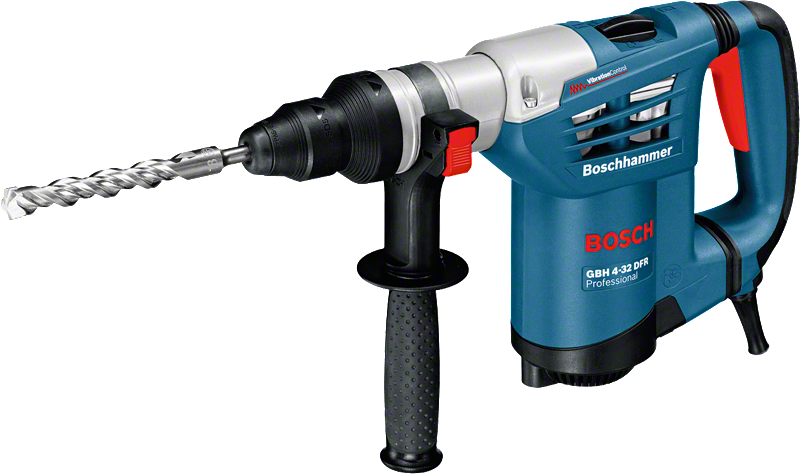

Rotary Hammer with SDS plus GBH 4-32 DFR Professional

The fastest multi-hammer in the 4kg class

Technical data
Additional data
Rated input power 900   W
Impact energy 4.2   J
Impact rate at rated speed 0 – 3,600   bpm
Rated speed 0 – 800   rpm
Weight 4.7   kg
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits 6 – 32   mm
Opt. appl. range concrete, hammer drill bits 14 – 25   mm
Max. drilling diameter masonry, core cutters 90   mm
Max. drilling diameter in metal 13   mm
Max. drilling diameter in wood 32   mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 12   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Chiselling)
Vibration emission value ah 9   m/s²
Uncertainty K 1.5   m/s²


The fastest multi-hammer in the 4kg class

  • Wide range of applications in chiselling and drilling work and when working with a core cutter
  • Drills up to 30% faster (25 mm diameter) than other tools in its class
  • Low vibration levels of only 12 m/s² for less tiring work due to Bosch Vibration Control


Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Optimal power transmission for small hammers
Metal chuck 1.0 - 13.0 mm
Forward / reverse rotation for inserting and removing screws
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Construction The professional power tools for construction from Bosch.

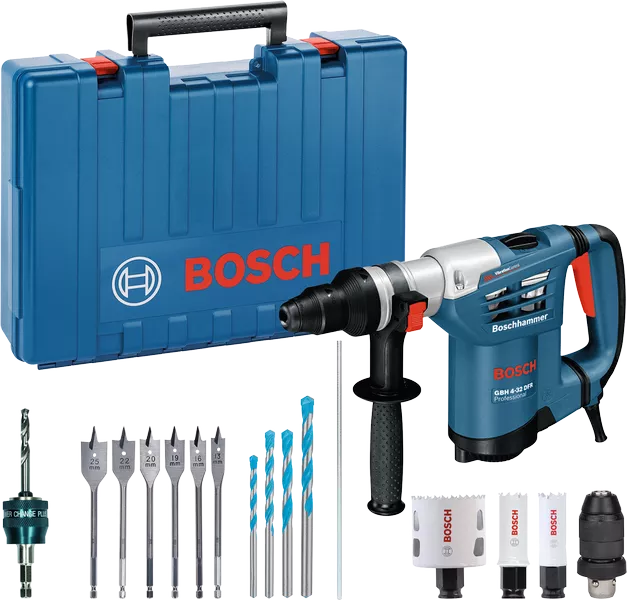

What’s Included in this Package
GBH 4-32 DFR Professional
GBH 4-32 DFR Professional
Order number: 0 611 332 1L0
Product variations (2)

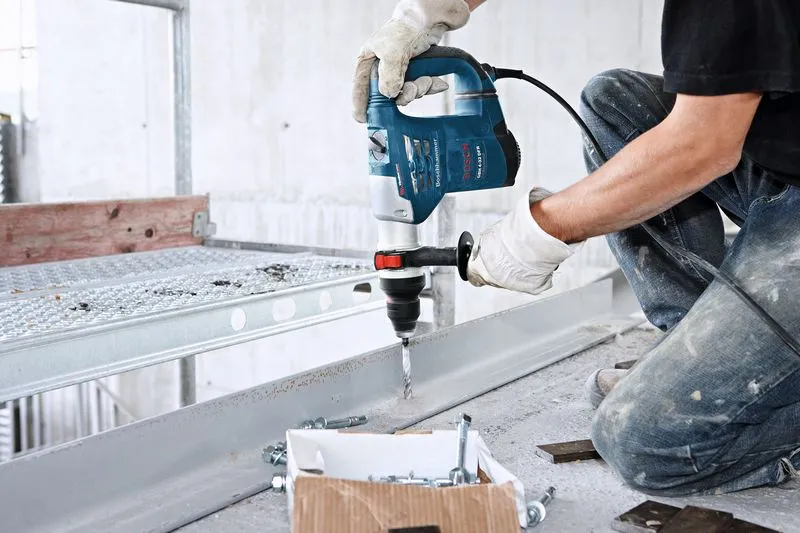

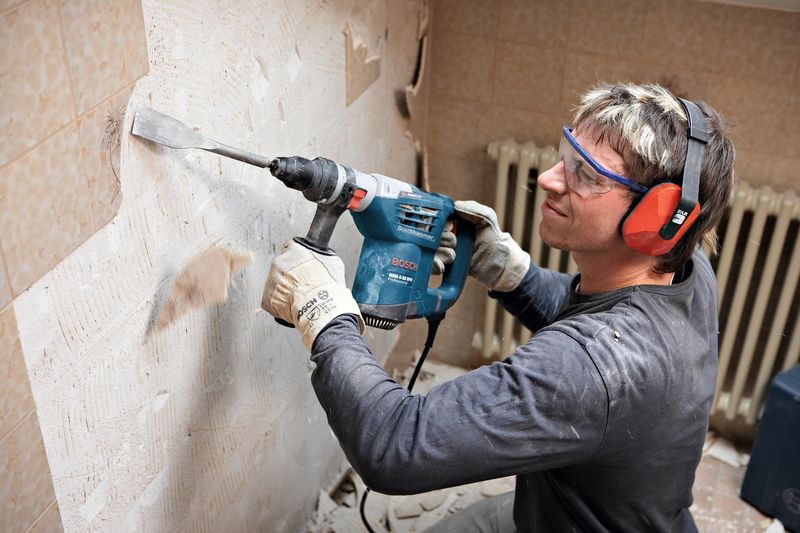

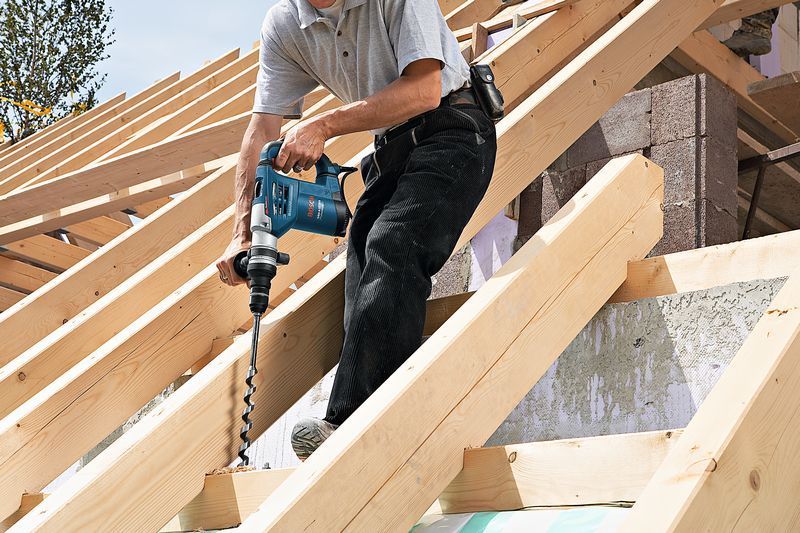

The GBH 4-32 DFR in action!
