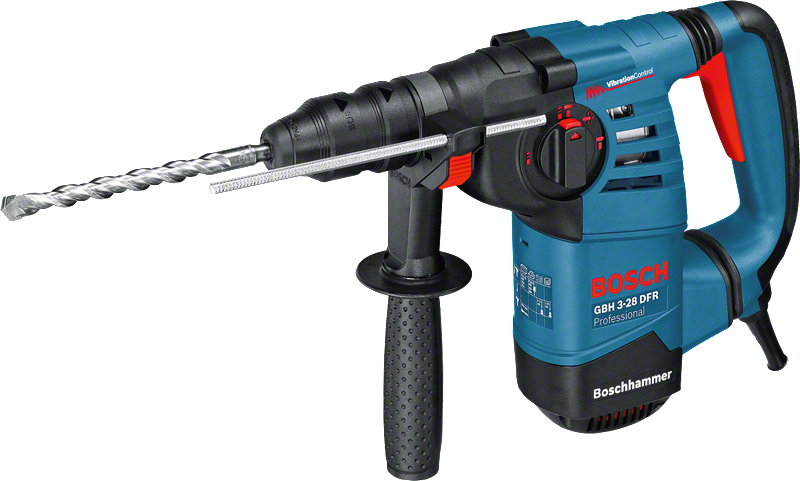

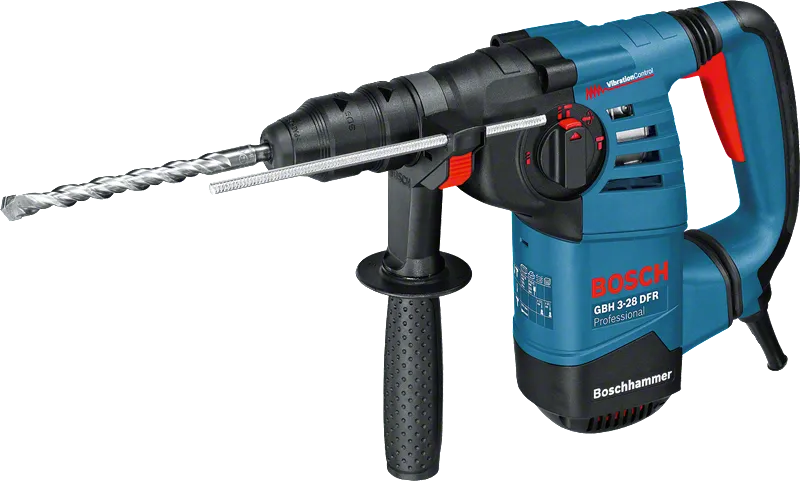

Rotary Hammer with SDS plus GBH 3-28 DFR Professional
Top performance with 20% less vibration
Technical data
| Additional data | |
|---|---|
| Rated input power* | 800 W |
| Impact energy* | 3.1 J |
| Impact rate at rated speed | 0 – 4,000 bpm |
| Rated speed | 0 – 900 rpm |
| Weight | 3.6 kg |

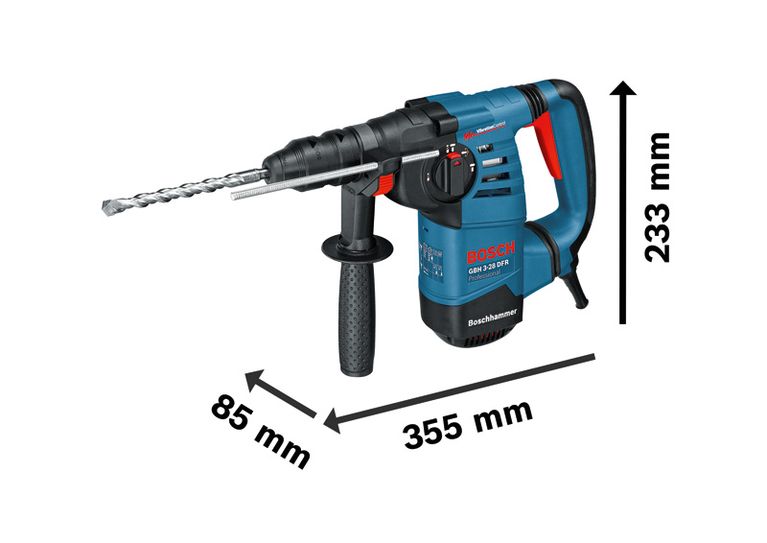

| Tool dimensions (length) | 354 mm |
| Tool dimensions (height) | 233 mm |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 4 – 28 mm |
| Opt. appl. range concrete, hammer drill bits | 12 – 18 mm |
| Drilling diameter in concrete with core cutters | 68 mm |
| Max. drilling diameter masonry, core cutters | 82 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 13 m/s² |
| Uncertainty K | 2 m/s² |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 9.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
Top performance with 20% less vibration
- High drilling rate and 20% higher chiselling power than other rotary hammers in its class
- 20% less vibration than other hammers in its class for more comfortable working due to Bosch Vibration Control
- Quick change chuck for fast changes between drilling with impact in concrete and drilling without impact in wood and metal
Functions

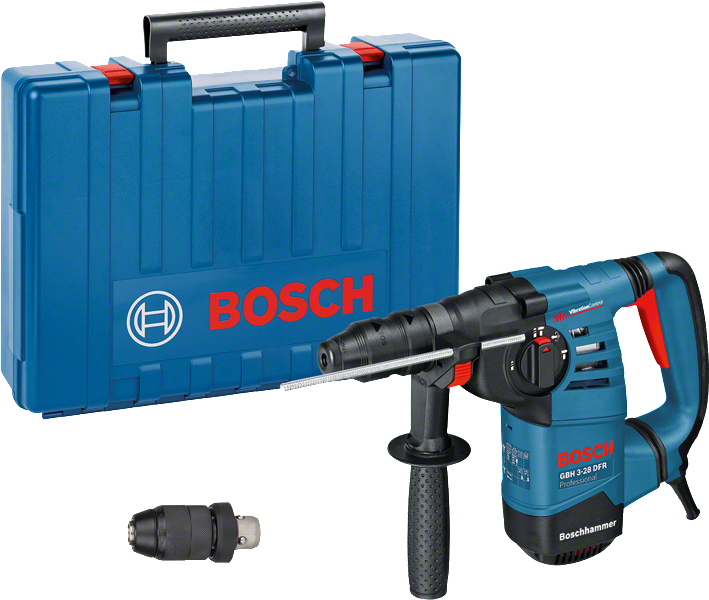

What’s Included in this Package
in carrying case with chuck, Accessory
Order number:
0 611 24A 060
- Carrying case 2 605 438 651
- Quick change chuck 13 mm 2 608 572 212
- Voltage 110 V
- Depth stop 210 mm 1 613 001 010
- SDS plus quick-change chuck 2 608 572 213
- Auxiliary handle 2 602 025 191
