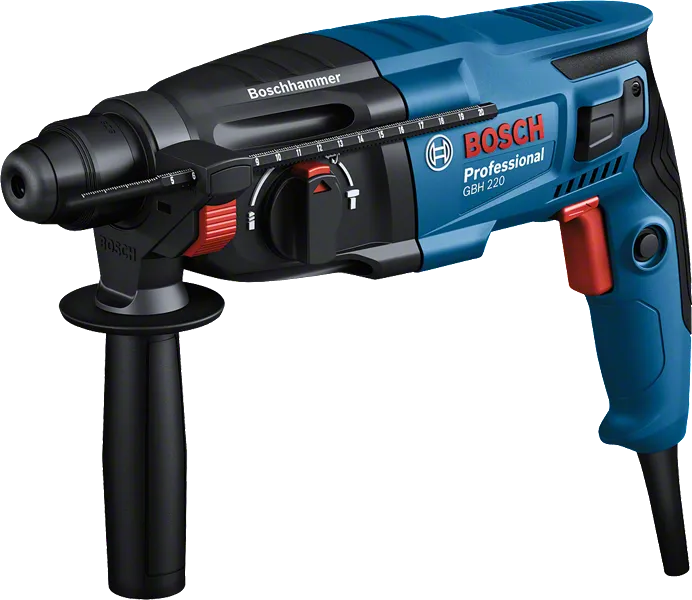

Rotary Hammer with SDS plus GBH 220 Professional
So compact, so powerful – Bosch’s rotary hammer now within reach
Technical data
| Additional data | |
|---|---|
| Rated input power | 720 W |
| Impact energy | 2 J |
| Weight | 2.3 kg |
| Impact rate at rated speed | 0 – 4,800 bpm |

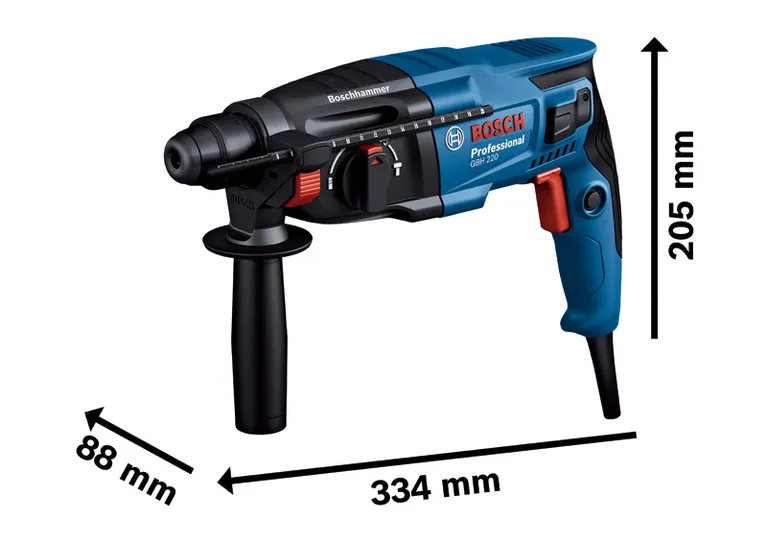

| Tool dimensions (width) | 88 mm |
| Tool dimensions (length) | 334 mm |
| Tool dimensions (height) | 205 mm |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits | 4 – 22 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
| Max. drilling diameter concrete | 22 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 14.7 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 11.9 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
So compact, so powerful – Bosch’s rotary hammer now within reach
- Powerful 720 W motor and 2.0 J of impact energy for effective hammer drilling in concrete (up to 22-mm diameter)
- Three-mode rotary hammer for hammer drilling, drilling, and chiselling – ensuring versatility and convincing results
- Compact rotary hammer offers professional Bosch hammer performance within reach
Functions

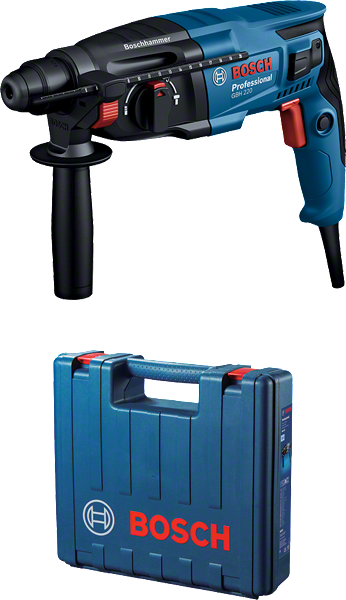

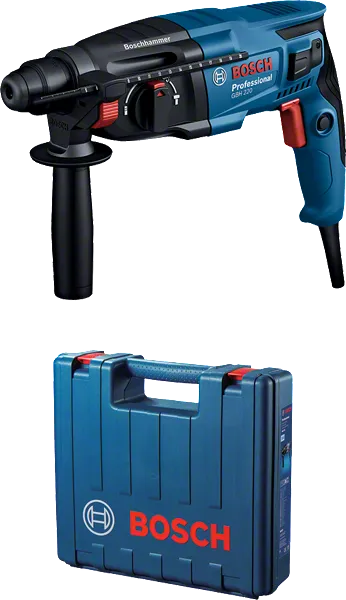

What’s Included in this Package
in carrying case
Order number:
0 611 2A6 0L0
- Carrying case
