Rotary hammers

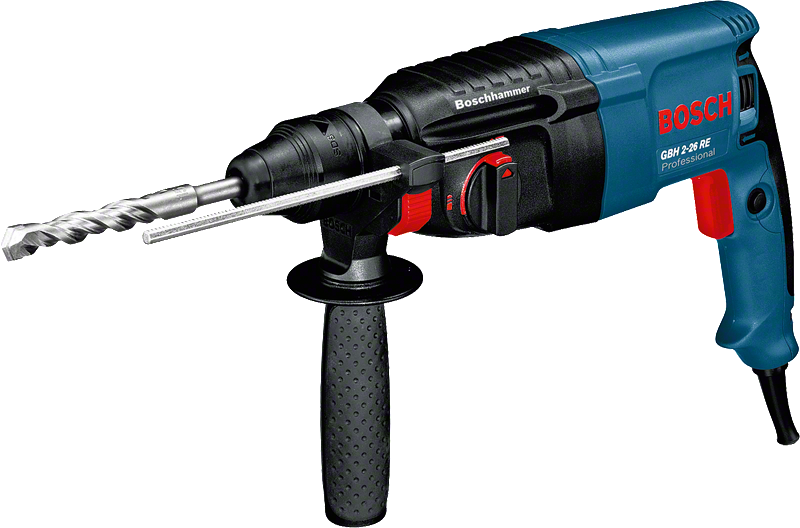

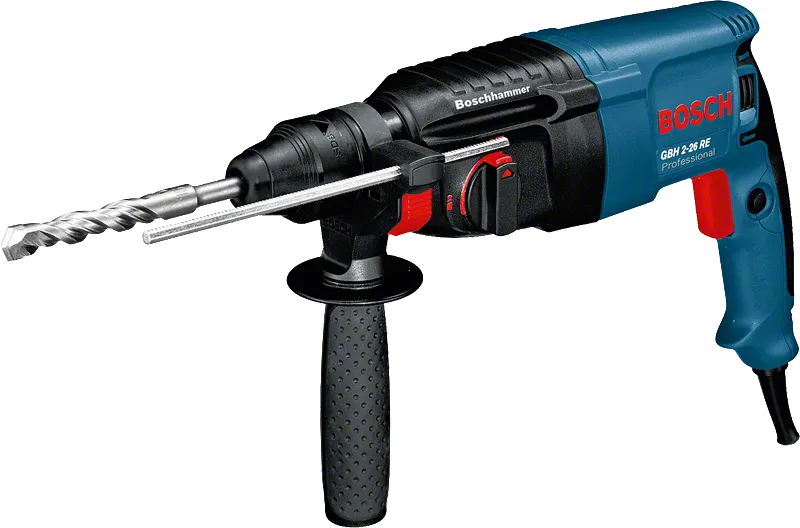

GBH 2-26 RE Professional

Rotary Hammer with SDS plus

The sturdy tool for daily use

Powerful 800-watt motor and impact force of 2.7 joules for a fast drilling rate
Changeable toolholder
Rotatable brush plate (equal power in forward and reverse rotation)

Functions & key features

Your Selection

in carrying case with depth stop

Show variant

Currently not available online

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with depth stop 0 611 251 705

Find a local dealer

GBH 2-26 RE Professional

Your Selection

in carrying case with depth stop

Order number: 0 611 251 705

Find a local dealer

Included in this variant

Carrying case

Order number: 2 605 438 098
Auxiliary handle (spare part number 1 612 025 057)
Depth stop 210 mm

Order number: 1 613 001 010

Your selection

Technical data

Performance data
Impact rate at rated speed	0 – 4,000 bpm
Rated speed	0 – 900 rpm

Additional data
Rated input power	800 W
Impact energy (according to EPTA 05/2016)	3 J
Voltage, electrical	115 V
Weight	2.7 kg
Tool holder	SDS plus

Drilling range
Drilling dia. concrete, hammer drill bits	4 – 26 mm
Opt. appl. range concrete, hammer drill bits	8 – 16 mm
Drilling diameter in concrete with core cutters	16 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	15 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	14 m/s²
Uncertainty K	1.5 m/s²

Hammer drilling in concrete
Vibration emission value ah	15 m/s²
Uncertainty K	1.5 m/s²

Chiselling in concrete
Vibration emission value ah	14 m/s²
Uncertainty K	1.5 m/s²

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
