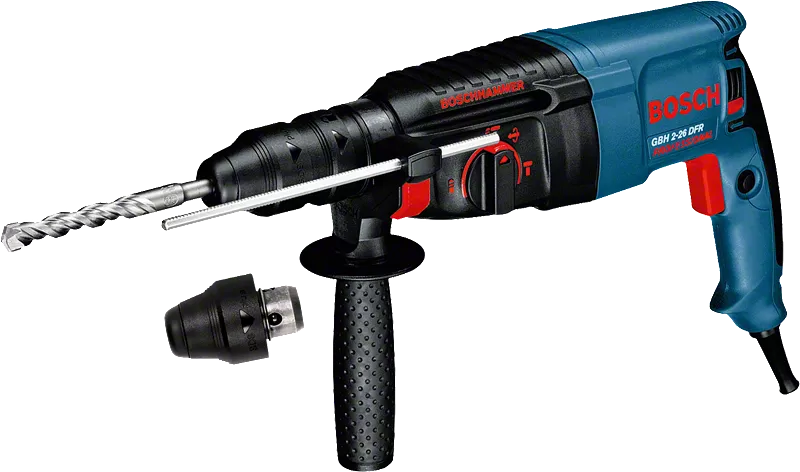

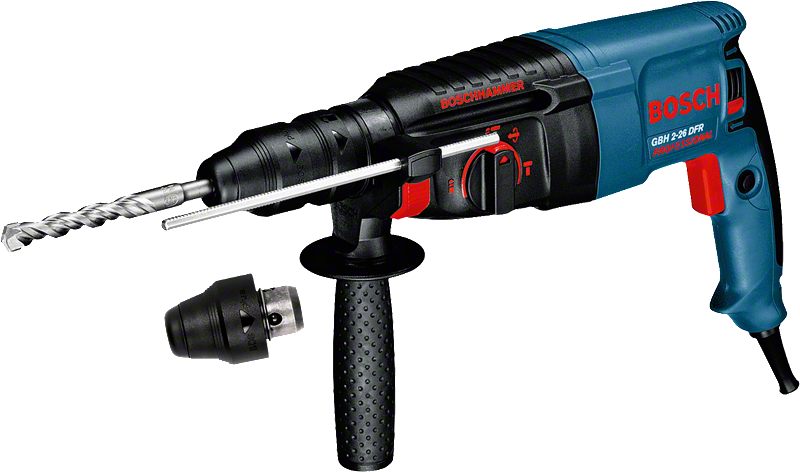

Rotary Hammer with SDS plus GBH 2-26 DFR Professional
Faster than a speeding bullet – The powerful all-rounder with quick-change chuck for daily use
Technical data
| Performance data | |
|---|---|
| Impact energy* | 3 J |
| Additional data | |
|---|---|
| Rated input power* | 800 W |
| Impact rate at rated speed | 0 – 4,000 bpm |
| Rated speed | 0 – 900 rpm |
| Weight | 2.9 kg |

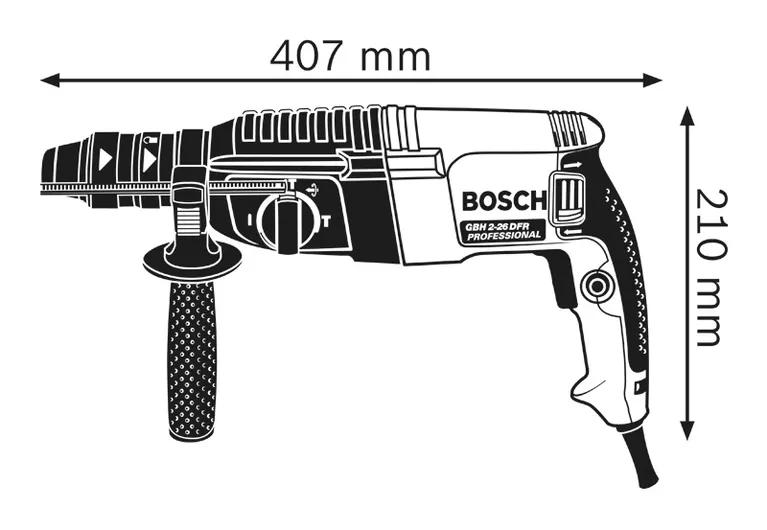

| Tool dimensions (width) | 83 mm |
| Tool dimensions (length) | 407 mm |
| Tool dimensions (height) | 210 mm |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 4 – 26 mm |
| Opt. appl. range concrete, hammer drill bits | 8 – 16 mm |
| Max. drilling diameter masonry, core cutters | 68 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 16.5 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 10.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.
Advantages
Faster than a speeding bullet – The powerful all-rounder with quick-change chuck for daily use
- Superior drilling rate in the 2 kg hammer class
- Exceptionally fast, tool-free changing between SDS plus and quick-change chuck
- Rotation stop for chiselling
Functions
What’s Included in this Package
in carrying case with accessory set
Order number:
0 611 254 76C
- Carrying case 2 605 438 098
- Quick change chuck 13 mm 2 608 572 212
- Depth stop 210 mm 1 613 001 010
- SDS plus quick-change chuck 2 608 572 213
- Auxiliary handle 2 602 025 141
