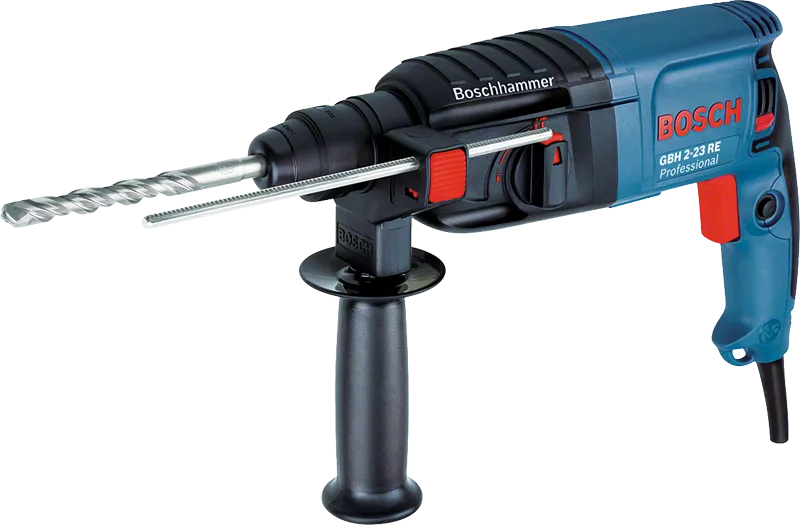

Rotary Hammer with SDS plus GBH 2-23 RE Professional

Specialist tool for drilling rows of holes

Technical data
Additional data
Rated input power* 650   W
Impact energy* 0 - 2.5   J
Impact rate at rated speed 0 – 4,400   bpm
Rated speed 0 – 1,000   rpm
Weight 2.3   kg
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits* 4 – 23   mm
Opt. appl. range concrete, hammer drill bits 6 – 12   mm
Max. drilling diameter masonry, core cutters 68   mm
Max. drilling diameter in metal 13   mm
Max. drilling diameter in wood 30   mm

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.

Advantages

Specialist tool for drilling rows of holes

  • Revolutionary new design and impact mechanism ensures faster drilling and robustness
  • Rotating brush plate for Forward/Reverse application
  • Overload clutch for user safety

Functions

Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
SDS plus toolholder Optimum power transfer. For Rotary Hammers in the 2 – 4kg class.
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Forward / reverse rotation for inserting and removing screws
Construction The professional power tools for construction from Bosch.
What’s Included in this Package
in carrying case with accessory set
in carrying case with accessory set
Order number: 0 611 250 4C0
  • Auxiliary handle 2 602 025 120
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
