Receivers
![]()
![]()
![]()
LR 6 Professional
Laser Receiver
Easy-to-operate laser receiver with a compact design
- Handy receiver for ranges of up to 50 m
- Alignment of the laser beam plane, visual and audible signals, for working in various lighting conditions
Functions & key features
Your Selection
- with 2 x battery (AAA)
Currently not available online
Find a local dealer
with 2 x battery (AAA)
0 601 069 H00
LR 6 Professional
Your Selection
with 2 x battery (AAA)
Order number: 0 601 069 H00
Currently not available online
Find a local dealerThis product includes
- 2 x 1.5 V LR03 battery (AAA)
Show less
Show more
Technical data
Additional data |
|
|---|---|
| Range of | 5 – 50 m (Maximum working range for operation with laser receiver according to the operating instructions for the Bosch line laser or Bosch point and line laser that is used) |
| Power supply | 2 x 1.5 V LR03 (AAA) |
| Dust and splash protection | IP 54 |
| Remote control | - |
| Receiver | - |
| Weight, approx. | 120 g |

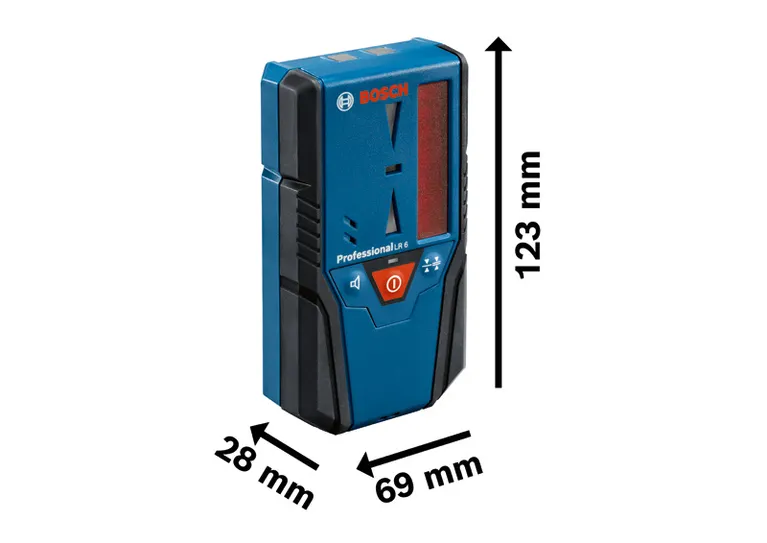

| Tool dimensions (width) | 69 mm |
| Tool dimensions (length) | 123 mm |
| Tool dimensions (height) | 28 mm |
| Measuring accuracy (fine/rough) | ± 1 mm/± 3 mm |

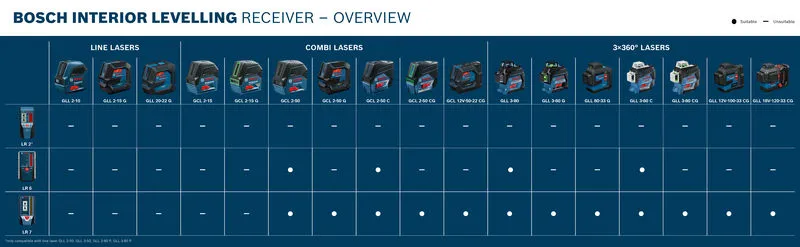

| Type of receiver | Combi- and line lasers |
