Technical data
| Additional data | |
|---|---|
| Saw blade diameter* | 254 mm |

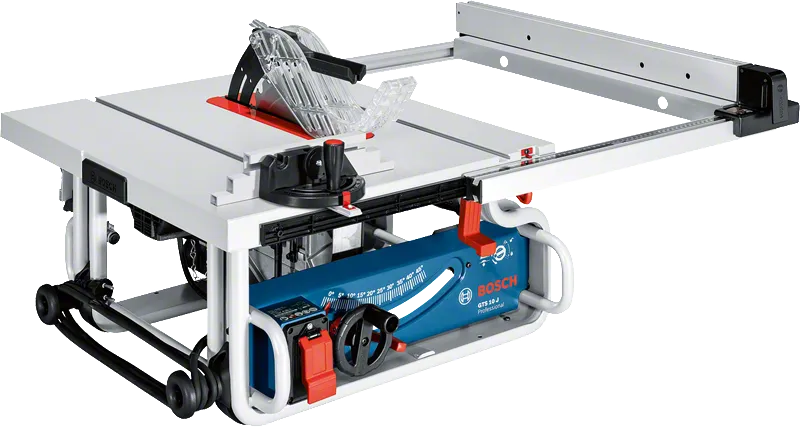

| Incline setting* | 47 ° L / 2 ° R |
| Table size* | 642 x 634 mm |
| No-load speed | 3,650 rpm |
| Cutting height 90° | 79 mm |
| Saw blade bore diameter | 30 mm |
| Weight | 27 kg |
| Max. cutting capacity on the right | 635 mm |
| Max. cutting capacity on the left | 255 mm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 103 dB(A); Sound power level 116 dB(A). Uncertainty K= 3 dB.
Advantages
The powerful tool with large cutting capacity
- Extremely compact and powerful
- Powerful 1,800 W motor with soft start and overload protection for fast working progress
- Optimal for transport due to compact design and different carrying handles
Functions
What’s Included in this Package
with Push stick (2 610 015 022)
Order number:
0 601 B30 5F0
- Wood saw blade
- Push stick 2 610 015 022
