Cordless Drill/Driver GSR 12V-15 FC Professional

Compact and flexible for any job in the 12 Volt class

Technical data
Additional data
Battery voltage* 12   V
Weight excl. battery* 0.6   kg
Torque (soft/hard/max.) 15/30/-   Nm
No-load speed (1st gear / 2nd gear) 0 – 400 / 0 – 1,300   rpm
Battery type Lithium-ion
Chuck capacity, min./max. 1 / 10   mm
Torque settings 20+1
Tool holder 1/4" internal hexagon
Drilling diameter
Max. drilling diameter in wood 30   mm
Max. drilling diameter in steel 10   mm
Max. screw diameter* 7   mm
Screw diameter
Max. drilling diameter in wood 30   mm
Max. drilling diameter in steel 10   mm
Max. screw diameter* 7   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 2.5   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 79 dB(A); Sound power level dB(A). Uncertainty K= 3 dB.

Advantages

Compact and flexible for any job in the 12 Volt class

  • Extremely short body design of 132 mm for drilling, fixing and screw driving in tight spaces
  • Bosch FlexiClick interface with integrated magnetic bit holder enables attachment of a bit holder, a chuck adapter, an angle adapter and an offset angle adapter
  • Angle and offset angle adapters can be adjusted and locked in 16 different positions with 360-degree mobility while on the drill
  • “One-Click” interface ensures a tight fix to the machine at a glance

Functions

1/4" internal hexagon tool holder
Full flexibility Bosch FlexiClick 5-in-1 System: Masters any challenge - the optimum solution in every work situation
Longer lifetime Optimal power transmission and less wear and tear thanks to full metal gear construction
No load speed 0 - 400/0 - 1300 min-1/rpm
Hard/soft torque 15/30 Nm
Max. screw diameter 7 mm
10.8 & 12 Volt 100% compatible All Bosch Professional 10.8 V tools, batteries & chargers are 100% compatible with all Bosch Professional 12 V tools, batteries & chargers

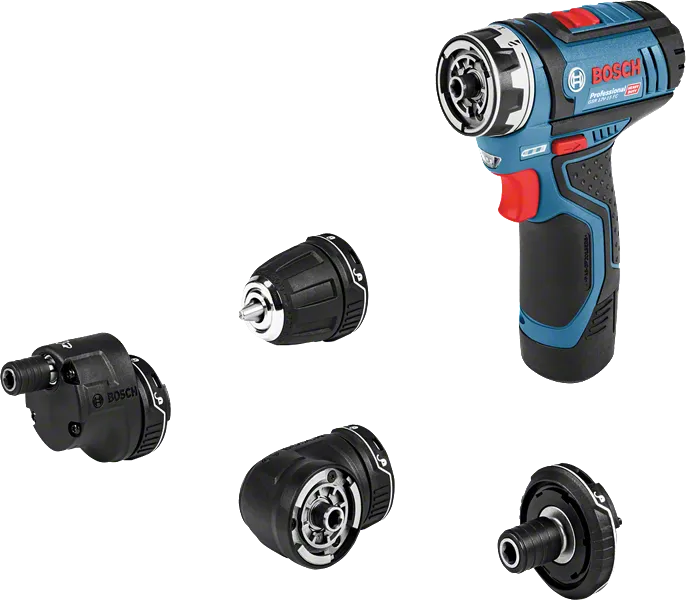

What’s Included in this Package *
with accessory set
with accessory set
Order number: 0 601 9F6 0L0
  • Drill chuck adapter GFA 12-B 1 600 A01 169
  • Offset angle adapter GFA 12-E 1 600 A00 F5N
  • Angle adapter GFA 12-W Professional 1 600 A01 16A

* Battery and charger not included

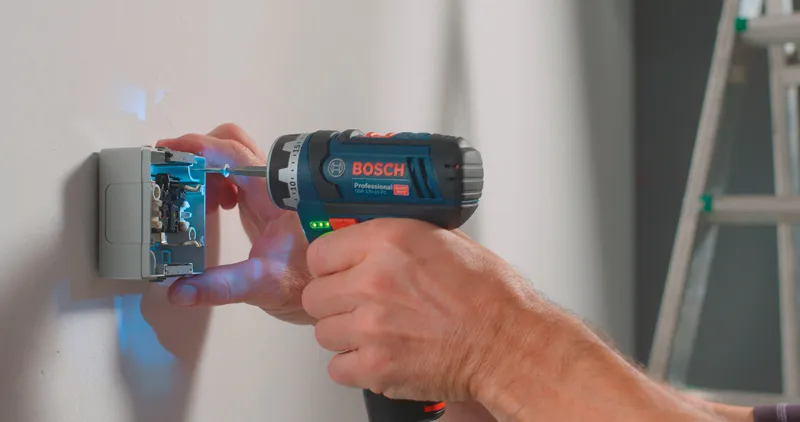

The GSR 12V-15 FC in action!
