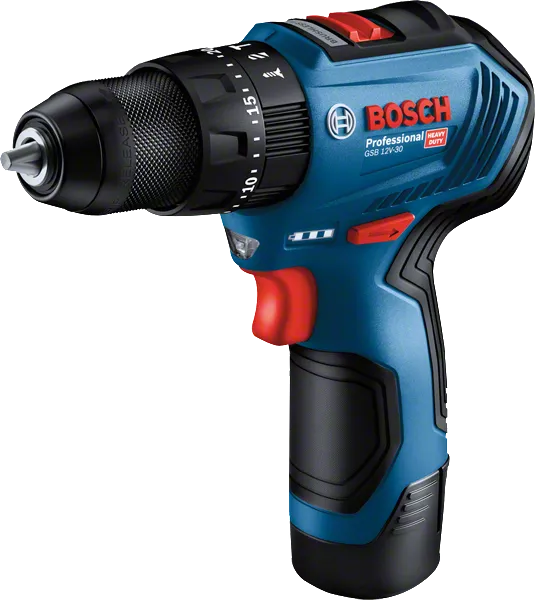

Cordless Combi GSB 12V-30 Professional

Impressive features, powerful results

Technical data
Additional data
Battery voltage* 12   V
Torque (soft/hard/max.) 18/30/-   Nm
No-load speed (1st gear / 2nd gear) 0 – 420 / 0 – 1,600   rpm
Battery type Lithium-ion
Max. impact rate 24,000   bpm
Chuck capacity, min./max. 1 / 10   mm
Weight excl. battery 0.82   kg
Torque settings 20+2
Tool holder Three-jaw chuck
Screw diameter
Max. screw diameter* 8   mm
Max. drilling diameter in aluminium 10   mm
Max. drilling diameter in wood 20   mm
Max. drilling diameter in steel 10   mm
Max. drilling diameter in masonry* 8   mm
Drilling diameter
Max. screw diameter* 8   mm
Max. drilling diameter in aluminium 10   mm
Max. drilling diameter in wood 20   mm
Max. drilling diameter in steel 10   mm
Max. drilling diameter in masonry* 8   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 2.1   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Impact drilling in masonry)
Vibration emission value ah 10.6   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 1   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 82.5 dB(A); Sound power level 93.5 dB(A). Uncertainty K= 3 dB.

Advantages

Impressive features, powerful results

  • High-end features within reach when screwdriving and drilling
  • Brushless motor for longer tool life
  • High torque and rapid drilling speeds for quick and powerful results

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Longer motor life - more runtime - more power thanks to brushless motor
Icon
Easy and precise control of the RPM thanks to variable speed
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Icon
Autolock chuck 1.5 - 10.0 mm
Battery 100 percent compatible with all tools within its voltage class Choose the XL battery for longest runtime or the compact battery for best handling
What’s Included in this Package
in carrying bag
in carrying bag
Order number: 0 601 9G9 1L1
  • 2 x battery GBA 12V 2.0Ah 1 600 A00 F6X
  • Quick charger GAL 12V-40 Professional 1 600 A01 B8Z
  • Carrying bag
  • 25-piece screwdriver bit set
  • 7-piece wood drill bit set (3/4/5/6/7/8/10 mm)
  • 7-piece metal drill bit set (2/3/4/5/6/7/8 mm)
