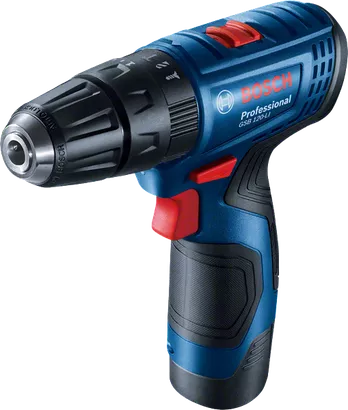

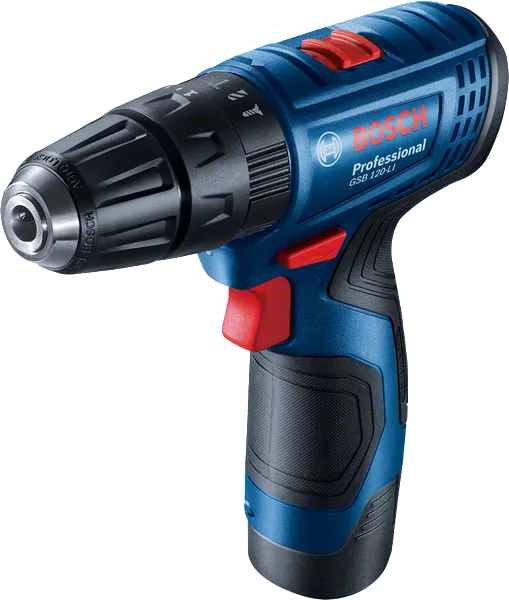

Cordless Combi GSB 120-LI Professional

Highly flexible, highly economical

Technical data
Additional data
Battery voltage* 12   V
Torque (soft/hard/max.) 14/30/-   Nm
No-load speed (1st gear / 2nd gear) 0 – 400 / 0 – 1,500   rpm
Battery type Lithium-ion
Max. impact rate 22,500   bpm
Chuck capacity, min./max. 1.5 / 10   mm
Weight excl. battery 0.9   kg
Torque settings 20+2
Tool holder Three-jaw chuck
Screw diameter
Max. screw diameter* 7   mm
Max. drilling diameter in wood 20   mm
Max. drilling diameter in steel 10   mm
Max. drilling diameter in masonry* 8   mm
Drilling diameter
Max. screw diameter* 7   mm
Max. drilling diameter in wood 20   mm
Max. drilling diameter in steel 10   mm
Max. drilling diameter in masonry* 8   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 1.4   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Impact drilling in masonry)
Vibration emission value ah 10.2   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 0.8   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 82.5 dB(A); Sound power level 93.5 dB(A). Uncertainty K= 3 dB.

Advantages

Highly flexible, highly economical

  • Power and flexibility within reach for screwdriving and drilling
  • 2-speed gearbox enables high productivity and excellent torque
  • Electronic Cell Protection for longer battery life and more durability

Functions

Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Easy and precise control of the RPM thanks to variable speed
Icon
Autolock chuck 1.5 - 10.0 mm
Battery 100 percent compatible with all tools within its voltage class Choose the XL battery for longest runtime or the compact battery for best handling

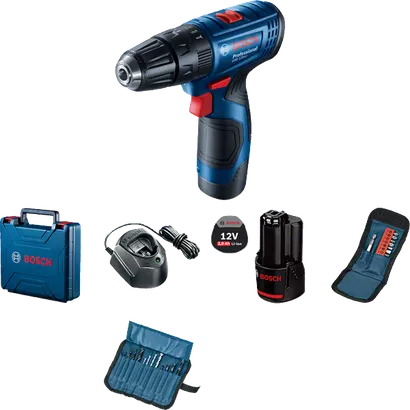

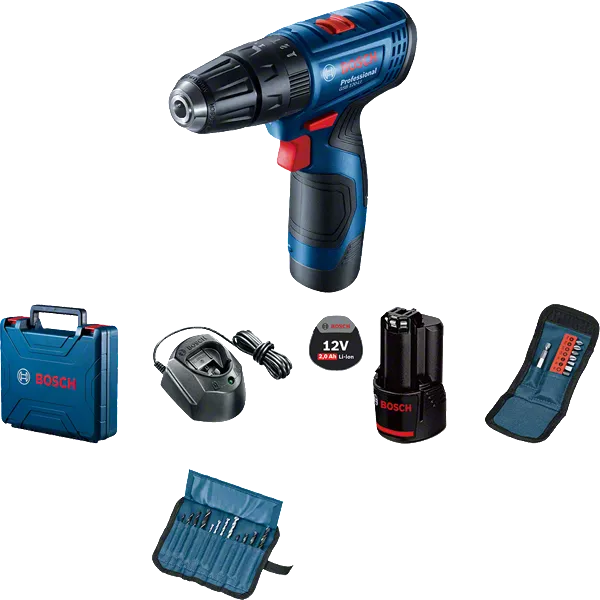

What’s Included in this Package
in carrying bag with 2 x 1.5 Ah Li-ion battery
in carrying bag with 2 x 1.5 Ah Li-ion battery
Order number: 0 601 9G8 1L2
  • 2 x battery GBA 12V 1.5Ah 1 600 Z00 02W
  • Charger GAL 1210 CV Professional
  • Carrying case
  • 23-piece drilling and screwdriving bit set with holder
