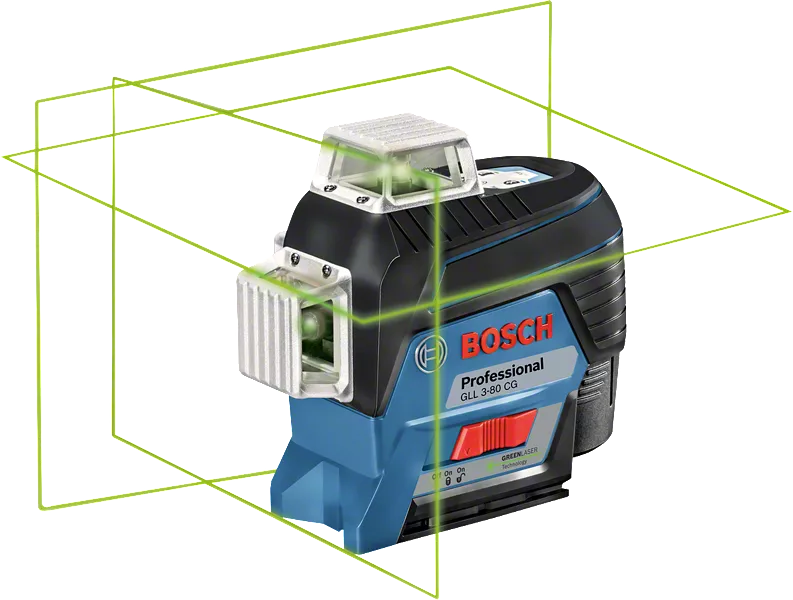

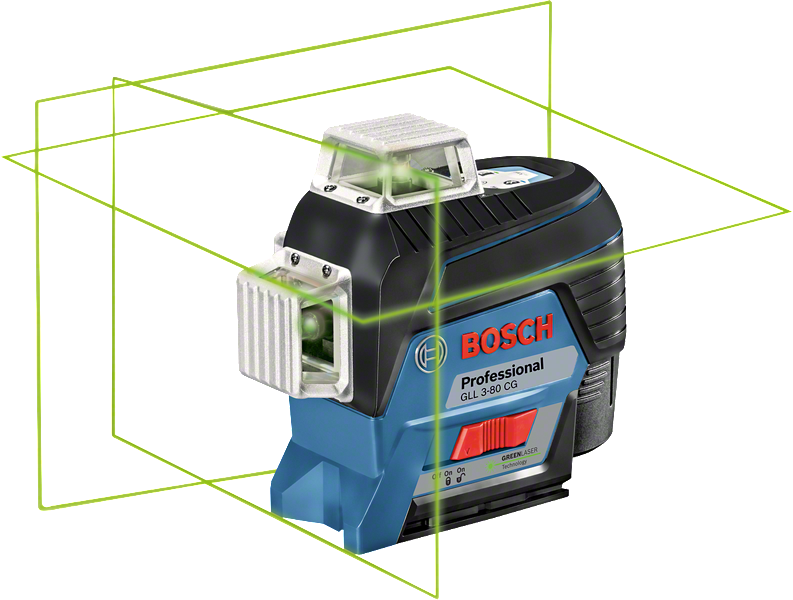

Line Laser

GLL 3-80 CG Professional

Green supreme visibility in 3 x 360°. Simply connected.

Technical data
Additional data
Working range* 30 m
Working range with receiver* 120 m
Accuracy* ± 0.2 mm/m
Laser diode 500 – 540 nm, < 10 mW
Operating temperature, from -10 °C
Operating temperature, up to 40 °C
Operating temperature -10 – 40°C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70°C
Laser class 2
Working range with receiver, value 120 m
Working range without receiver, value 30 m
Working range without receiver 30 m
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.) 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.9 kg
Colour of laser line green
Projection 3 x 360° line

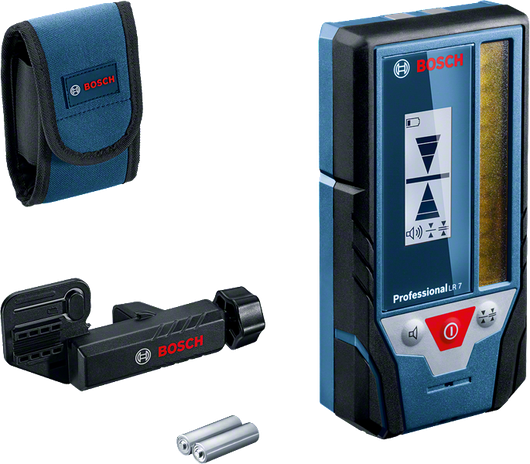

Compatible laser receivers LR 7

* Highlighted Data

Advantages

Green supreme visibility in 3 x 360°. Simply connected.

  • Up to four times better visibility due to the green laser lines
  • Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool
  • High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
What’s Included in this Package
in carrying case with 4 x battery (AA), accessory set
in carrying case with 4 x battery (AA), accessory set
Order number: 0 601 063 U80
  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • AA1 alkaline battery adapter 1 608 M00 C1B
  • Target
  • Carrying case
  • Universal Holder BM 1 Professional 0 601 015 A00
  • Clamp 1 609 B00 839

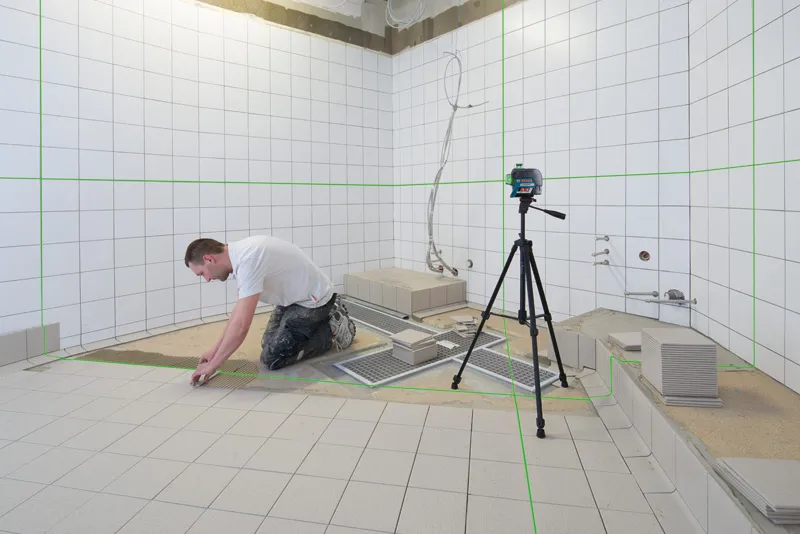

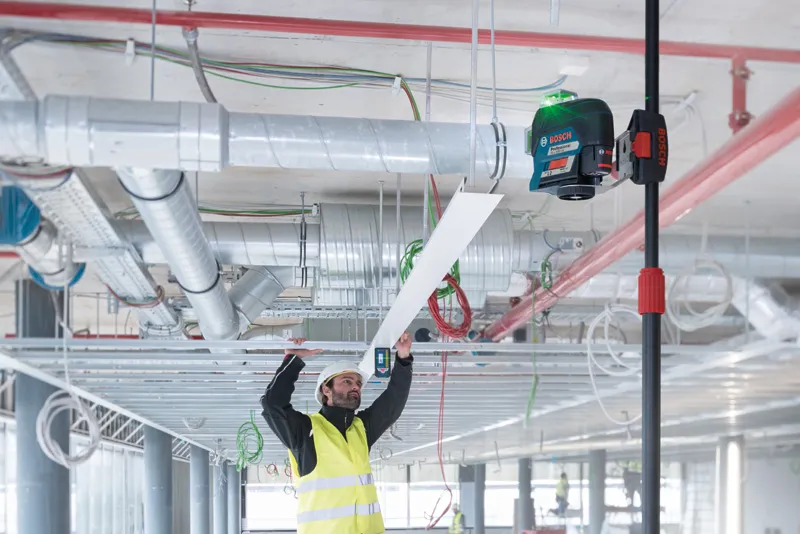

The GLL 3-80 CG in action!
