Line lasers

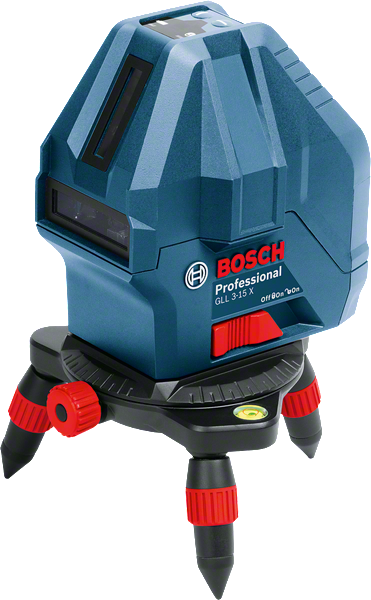

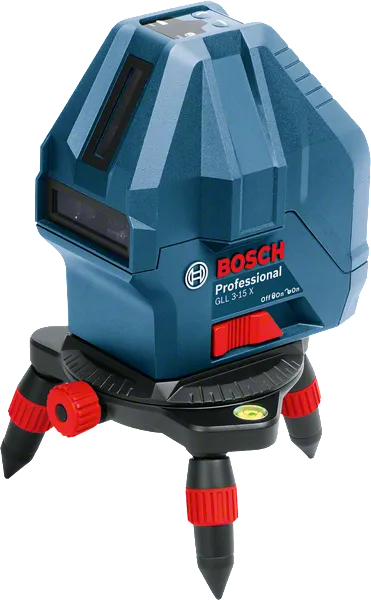

GLL 3-15 X Professional

Line Laser

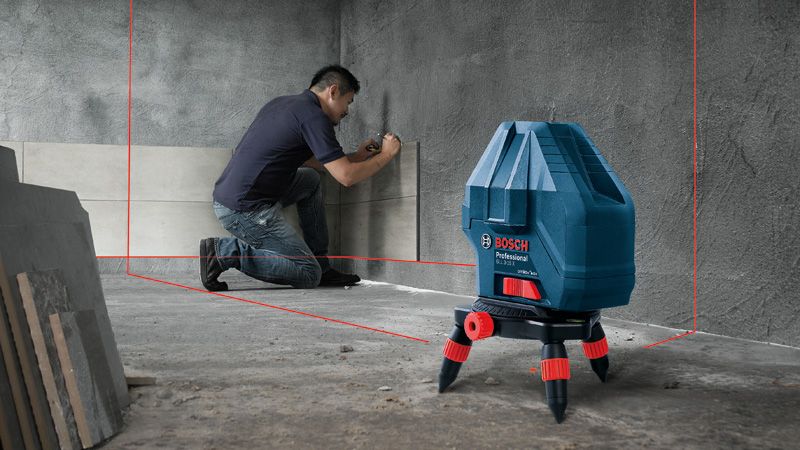

For easy decorative interior fitting applications

  • Maximum precision thanks to the Bosch Pendulum Precision System
  • Projection of a vertical and a horizontal line
  • Detachable, 360° rotating platform with bubble vial and fine adjustment
See technical details

Functions

Working range Range of up to 15 m
Self Levelling 3° Self-levelling ± 3°
Pendulum Prec. System Precision pendulum system consists of high-precision, hardened shaped parts and optics with shock absorber
Intell. Current Management Intelligent current management helps to monitor the laser diode temperature and to maximise laser visibility without overheating
Detach. Rotating Platform Rotating mini tripod makes fine positioning easier

Your Selection

  • in carrying bag
Show variant Find a local dealer

in carrying bag 0 601 063 M80

GLL 3-15 X Professional

Your Selection

in carrying bag

Order number: 0 601 063 M80

Find a local dealer

Technical data

Additional data

Accuracy Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Projection 3 lines + 1 plumb point
Working range 15 m
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 45 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range of laser points, max. 5 m (bottom)
Self-levelling range ± 3°
Levelling time 4 s
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 24 h
Tripod thread 5/8"
Weight, approx. 0.72 kg
Colour of laser line red
Color of plumb points red
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value 15 m
