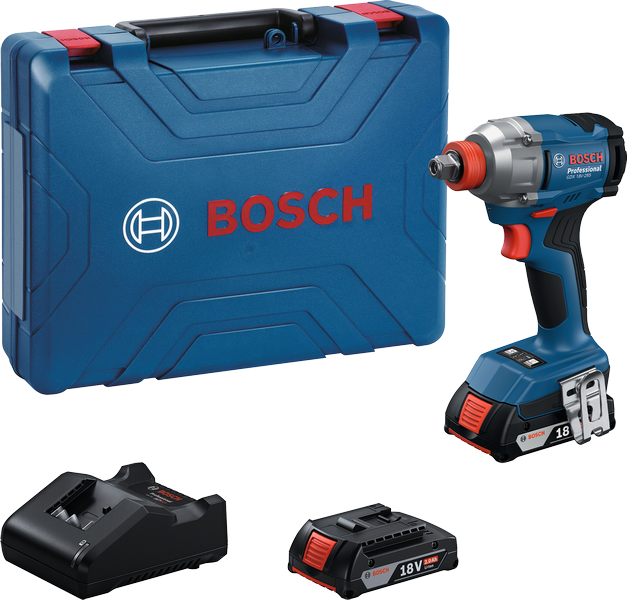

Bosch GDX 18V-285 cordless impact driver set.

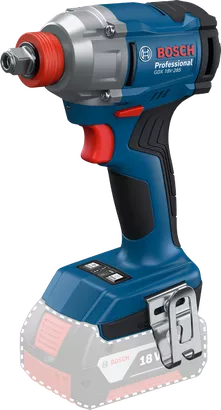

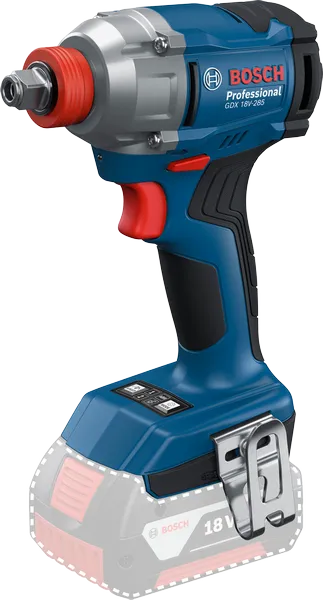

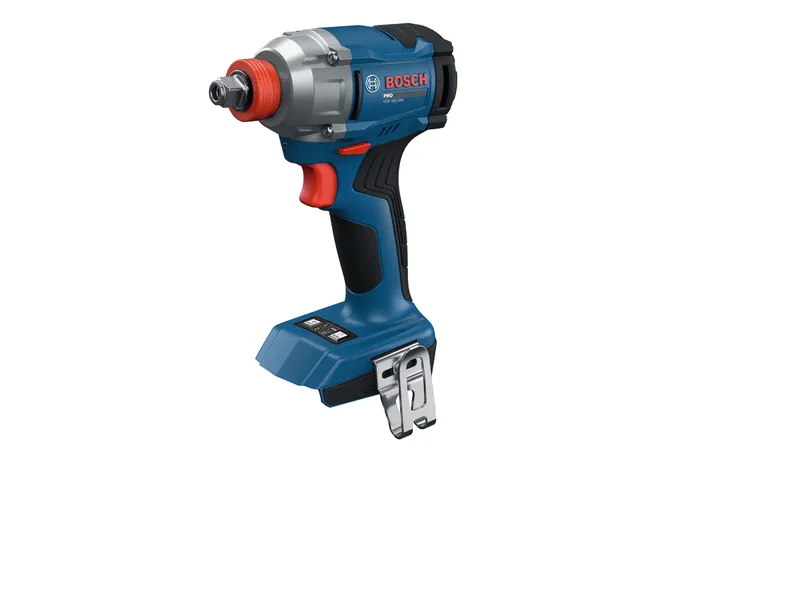

Bosch GDX 18V-285 cordless impact driver/wrench.
A person wearing safety equipment uses a cordless drill to fasten a metal duct.
A person wearing safety equipment installs a security camera using a power drill.
A person wearing safety equipment uses a cordless drill under a lifted vehicle.
A person wearing safety equipment uses a cordless drill to install a security camera.

GDX 18V-285 Professional

Cordless Impact Driver/Wrench

AMPShare

The ideal tool for bolting and screwdriving with one tool holder

  • Convenient and saves time with single tool, GDX 2-in-1 tool holder for both screw-driving and bolting application
  • Powerful bolting tool with 285 Nm torque performs bolting applications with ease; 2-Speed Selector. High speed for productivity, medium for delicate jobs
  • Comfortable to use for long periods thanks to the ergonomic handle with Soft-grip and slim handle

Functions & key features

Brushless motor
18 volt
Dual bit insertion
Speed selection
Tightening torque 285 Nm

Your Selection

  • in carrying case
Show variant Find a local dealer

in carrying case 0 601 9N2 1L2

GDX 18V-285 Professional

Your Selection

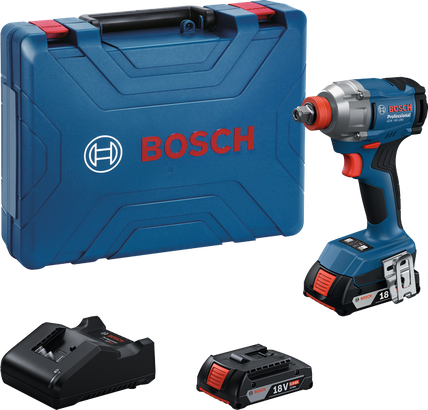

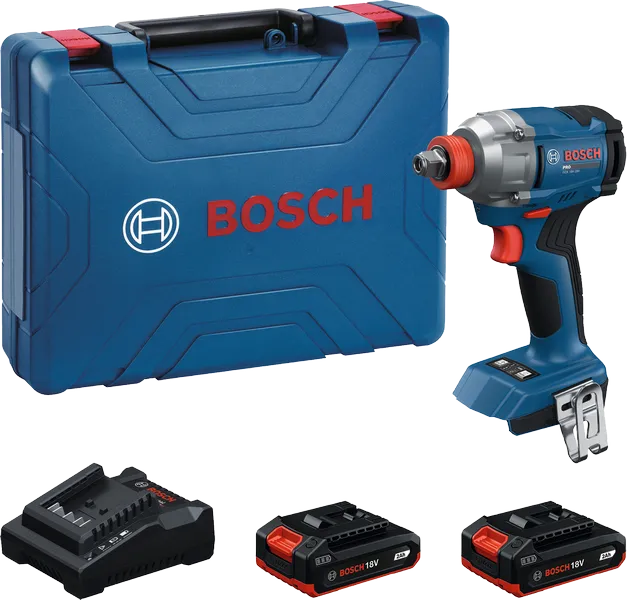

Bosch GDX 18V-285 cordless impact driver set.
in carrying case

Order number: 0 601 9N2 1L2

Find a local dealer

Included in this variant

  • 2 x battery GBA 18V 2.0Ah
    Order number: 1 607 A35 0MA
  • Charger GAL 18V-20 Professional
    Order number: 2 607 226 283
  • Carrying case

Technical data

Additional data

Battery voltage
18.0 V
Torque, max.
285 Nm
No-load speed
0-2,000 rpm
Tool holder
1/2" square friction ring and thru hole, 1/4'' Hex Uni
Weight incl. battery
1.5 kg
Breakaway torque, max.
500 Nm
Torque adjustment range, min./max., 1st level
0/200 Nm
Torque adjustment range, min./max., 2nd level
0/285 Nm
No-load speed (1st level)
0-2,000 rpm
No-load speed (2nd level)
0-2,800 rpm
Torque settings
2
Weight excl. battery
1.1 kg
Impact rate
0-3,600 bpm
Impact rate (1st level)
0-3,000 bpm
Impact rate (2nd level)
0-3,600 bpm
Show more

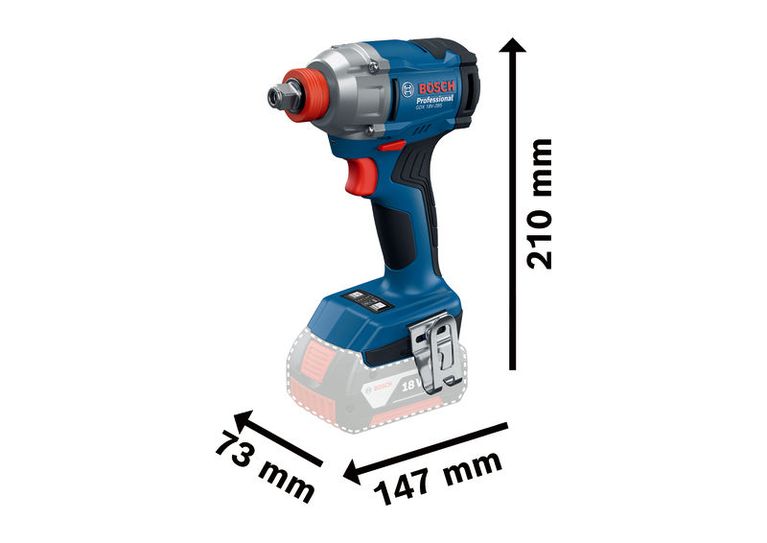

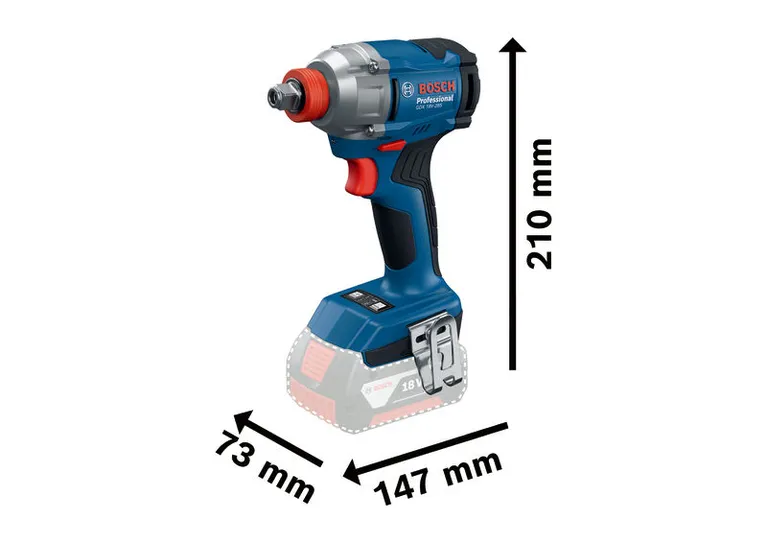

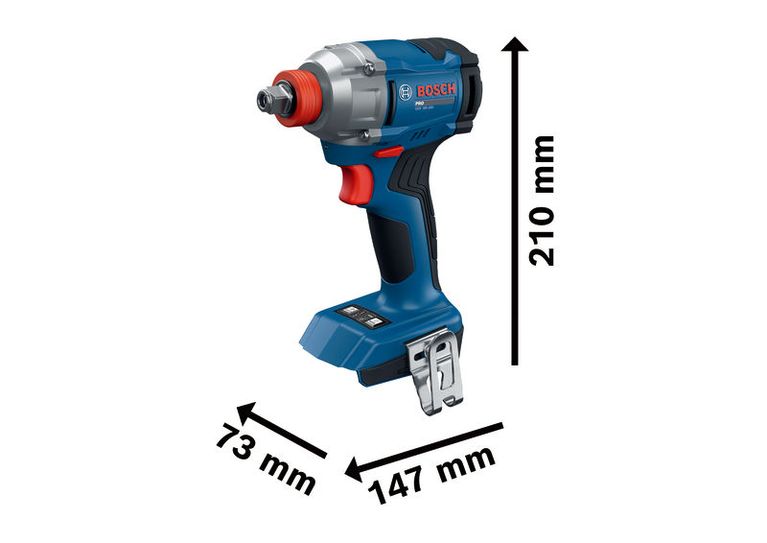

Bosch GDX 18V-285 impact driver, 210 mm height.

* You can find more information about the deviations in the following link: Technical features of products

GDX 18V-285 Professional: Further information

Product Highlights

Whether you work outdoors or indoors, transporting and carrying multiple tools is a hassle. The 2-in-1 GDX 18V-285 keeps things simple, because for both screwdriving and bolting, you only need a single tool. This powerful tool produces 285 Nm torque and can perform bolting up to M18. The 2-speed selection allows you to choose the speed and torque best suited to your application.

Equipment & Application

The 2-in-1 GDX 18V-285 Impact screwdriver optimizes bolting performance on M8, M10, and M12 bolts with its powerful torque and speed selector. This tool can also be used for screwdriving applications with self-drilling screws with diameters of 4.2 mm and 4.8 mm in sheet metal, with wood screws with diameters of 4 mm, 5 mm, and 8 mm, as well as with M6, M8, and M10 lag screws.
