Combi lasers

GCL 2-15 G Professional

Combi Laser

GCL 2-15 G

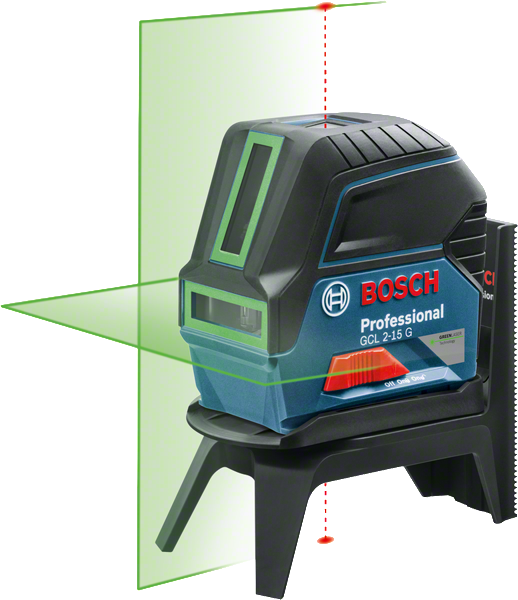

Green laser lines for up to four times better visibility

  • Green horizontal and vertical laser lines for up to four times better visibility than red lines
  • Precise transfer applications thanks to red plumb points

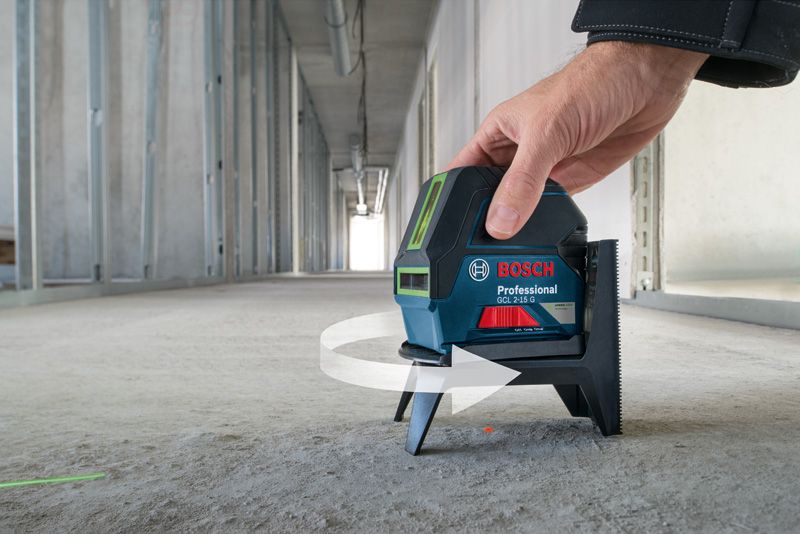

  • Rotating mount RM 1 Professional allows laser lines to be easily aligned around the plumb points

Functions & key features

Working range up to 15 m
Tripod mount for 5/8" and 1/4" tripod thread
Laser class 2
Slide mechanism
Line accuracy of ± 0.3 mm/m* (*plus use-dependent deviation)

Your Selection

  • in carrying case with 3 x battery (AA), rotating mount
Show variant

Currently not available online

Find a local dealer

in carrying case with 3 x battery (AA), rotating mount 0 601 066 J00

GCL 2-15 G Professional

Your Selection

GCL 2-15 G
in carrying case with 3 x battery (AA), rotating mount

Order number: 0 601 066 J00

Find a local dealer

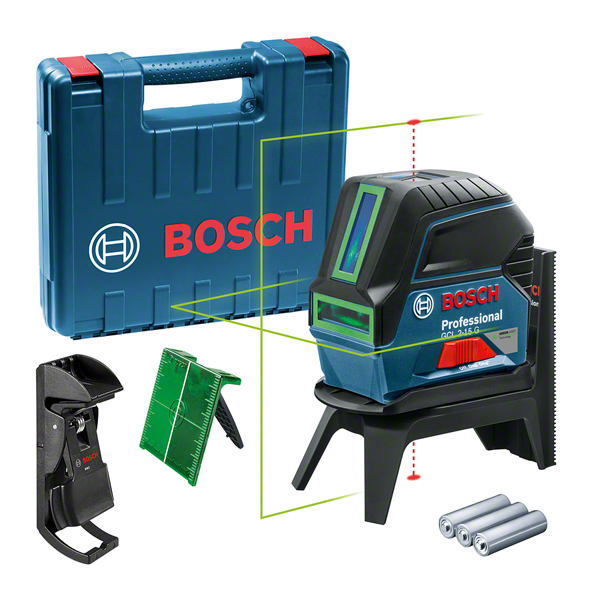

Included in this variant

  • Rotating mount RM 1 Professional
    Order number: 0 601 092 600
  • 3 x 1.5 V LR6 battery (AA)
  • Ceiling clamp
  • Carrying case
  • Laser target plate

Technical data

Additional data

Tripod thread 1/4", 5/8"
Colour of laser line green
Projection 2 lines / 2 points
Working range up to 15 m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Dust and splash protection IP 54
Laser diode Line: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Levelling time 4 s
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode, 8 h in cross line mode, 10 h in line and point mode, 12 h in line mode, 22 h in point mode

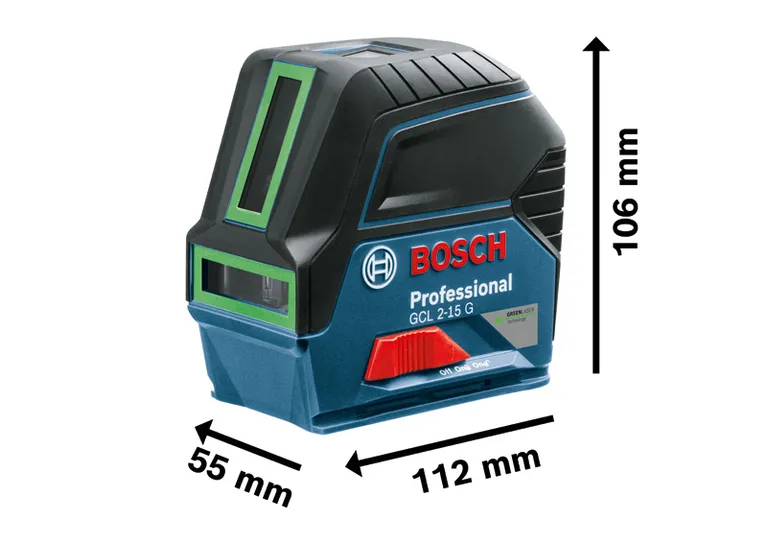

Weight, approx. 0.49 kg
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value 15 m

GCL 2-15 G

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

GCL 2-15 G Professional: Further information

Product Highlights

Up to four times better visibility with green laser lines and perfectly versatile – this is Bosch´s combi laser GCL 2-15 G Professional. The two laser lines allow for precise vertical and horizontal alignment, while red plumb points simplify transfer applications. Easily align laser lines around the plumb points with the versatile rotating mount RM 1 Professional.

Equipment & Application

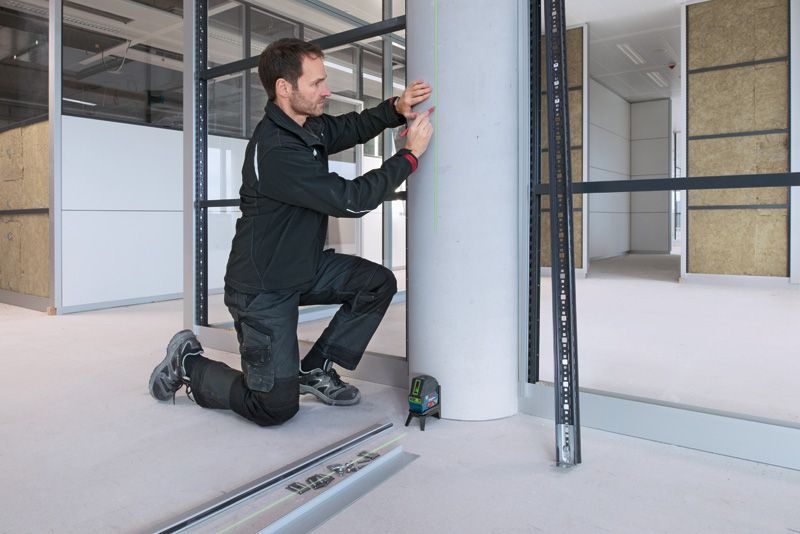

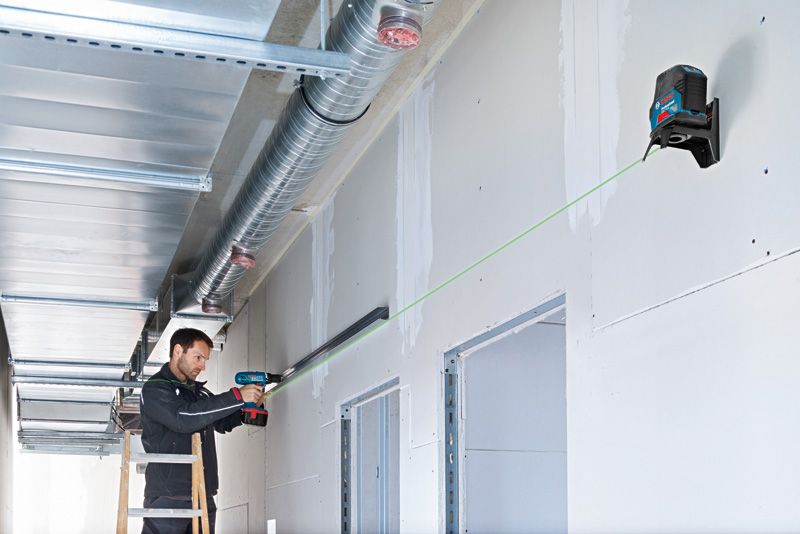

The GCL 2-15 G Professional is suitable for various jobs such as suspending drop-ceilings, installing drainage pipes and laying floors. It also offers point transfers for light mountings.

Additional Information

The GCL 2-15 G Professional has a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust with IP54 dust and splash water protection. When the tool is switched off, the pendulum automatically locks for safe transportation and convenient storage.
