Technical data
| Additional data | |
|---|---|
| Rated input power* | 550 W |
| Weight | 2.1 kg |
| No-load speed | 0 – 550 rpm |
| Power output | 285 W |
| Rated speed | 380 rpm |
| Rated torque | 5.0 Nm |
| Max. torque | 60.0 Nm |
| Drilling range | |
|---|---|
| Drilling diameter in aluminium | 20 mm |
| Drilling diameter in wood* | 40 mm |
| Drilling diameter in steel* | 13 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 2.6 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 83 dB(A); Sound power level 85 dB(A). Uncertainty K= 3 dB.
Advantages
The sturdy, powerful tool
- Highest quality and durability due to cut gears, ball and needle bearings, as well as robust metal gear housing
- Masters simply everything due to the triple reduction gears and the highest torque in its class (60 Nm)

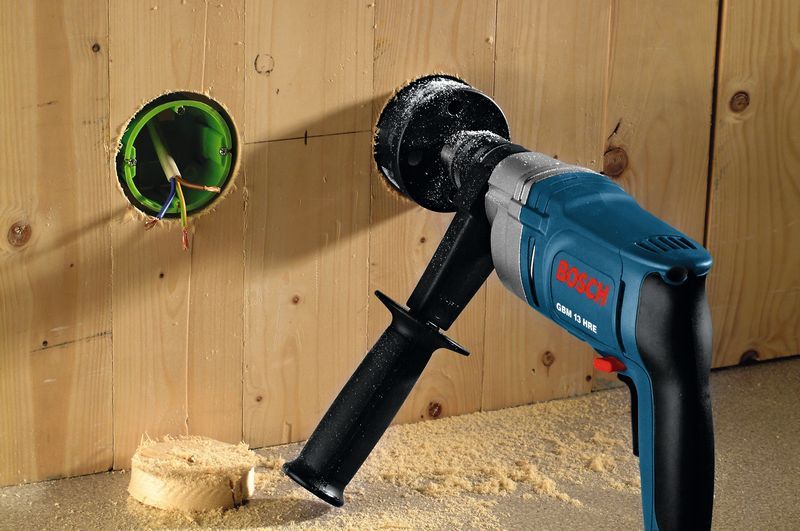

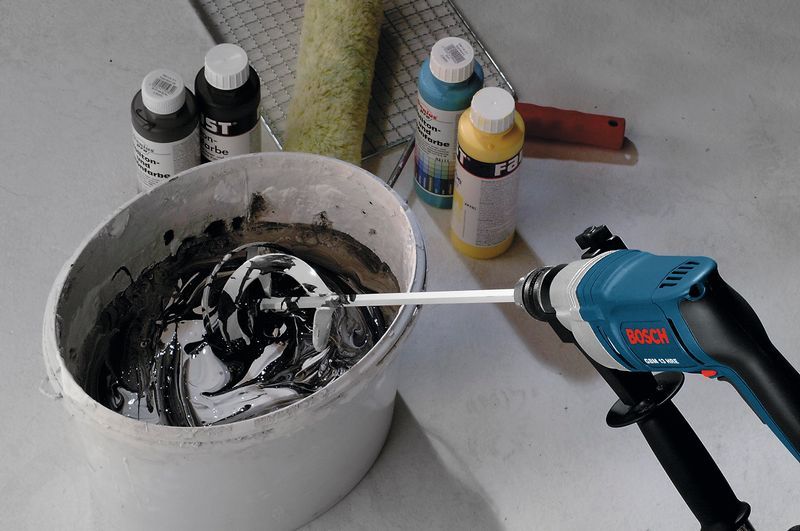

- With the appropriate accessories, even the largest hole diameters, working with holesaws up to 80 mm or stirring thick liquids are no problem
Functions
What’s Included in this Package
with accessory set
Order number:
0 601 049 603
- Auxiliary handle 1 612 025 020

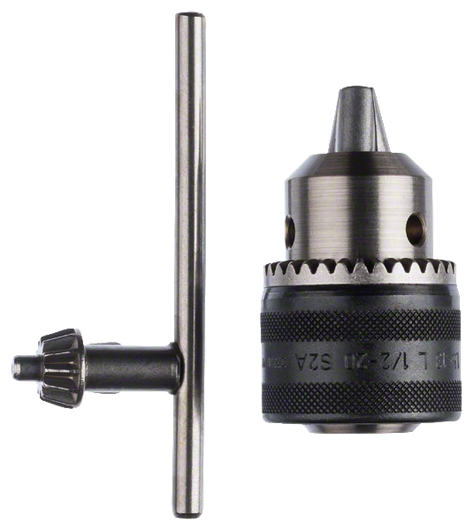

- Keyed chuck 1.5 - 13 mm 1 608 571 062
