Drill GBM 10 RE Professional

The powerful and compact tool

Technical data
Additional data
Rated input power* 450   W
Weight 1.7   kg
No-load speed, 1st gear 0 – 2,600   rpm
Power output 360   W
Rated speed 1,676   rpm
Rated torque 20.0   Nm
Drill spindle connecting thread 3/8"
Chuck capacity, min./max. 1 – 10   mm

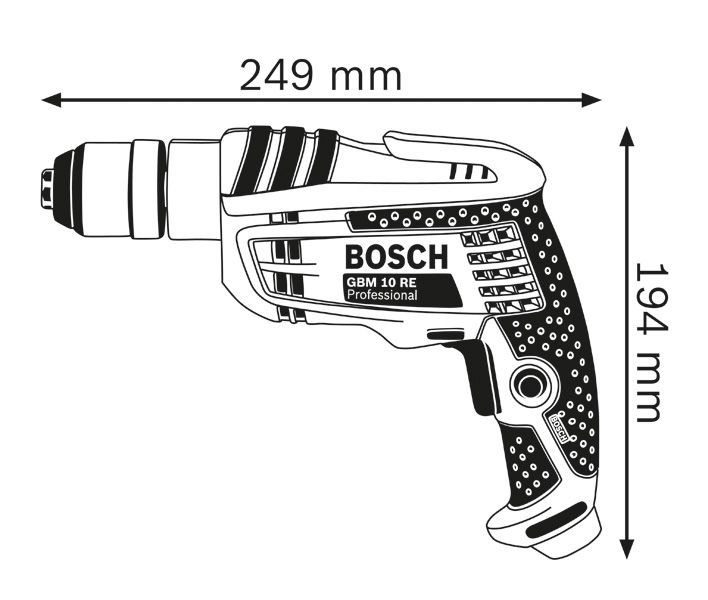

Tool dimensions (width) 68   mm
Tool dimensions (length) 267   mm
Tool dimensions (height) 194   mm
Drilling range
Drilling diameter in aluminium 10   mm
Drilling diameter in wood* 25   mm
Drilling diameter in steel* 10   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 4.8   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.8   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.


The powerful and compact tool

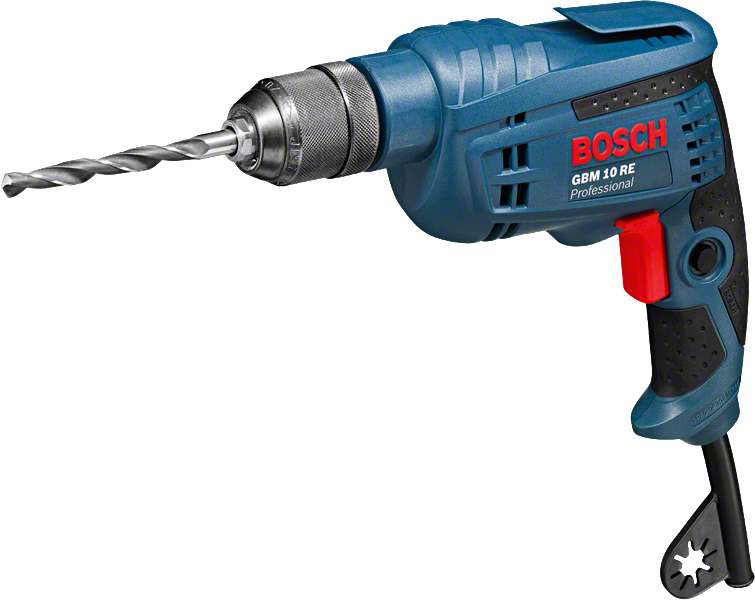

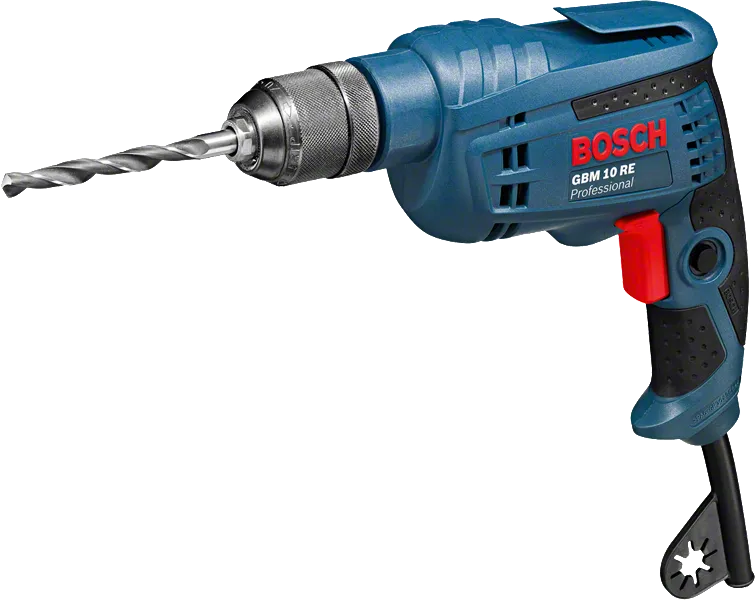

  • Powerful 600 W motor, ideal for drilling holes up to 10 mm in diameter in metal
  • Drill spindle fixed in bearing for high precision
  • Compact design and low weight for optimum handling in medium-duty drilling applications


Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.
What’s Included in this Package

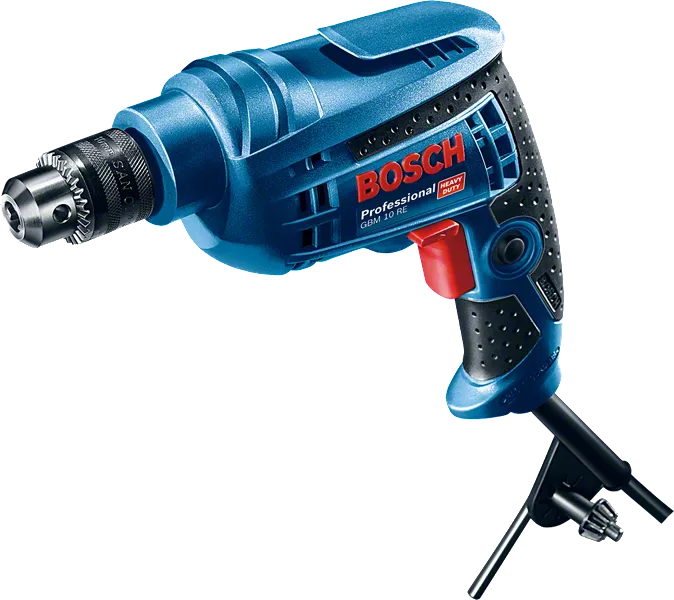

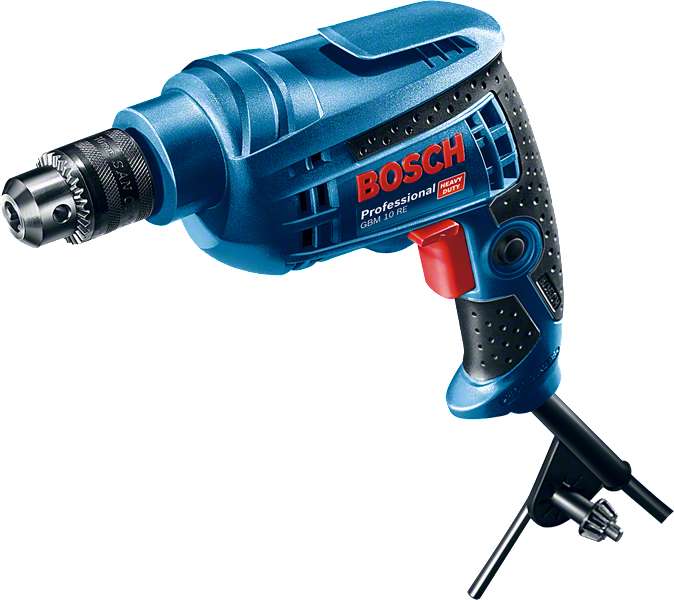

GBM 10 RE Professional
GBM 10 RE Professional
Order number: 0 601 473 5L0
  • Keyed chuck 10 mm 2 608 571 078

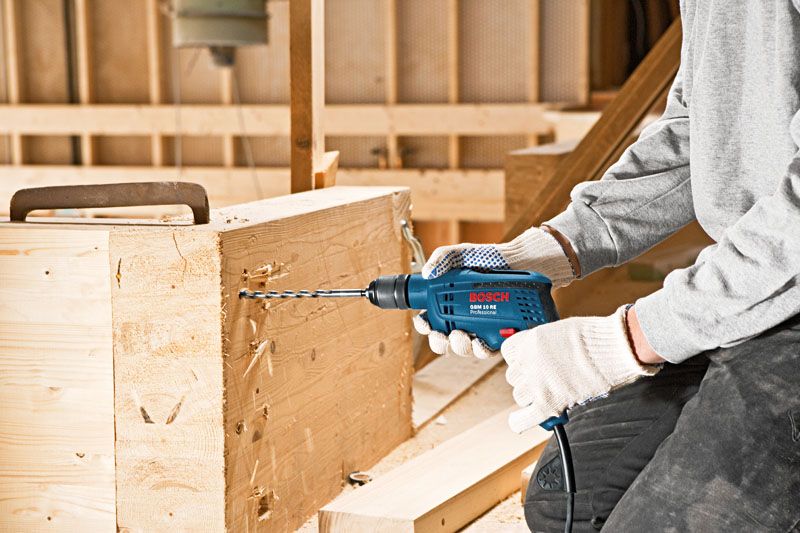

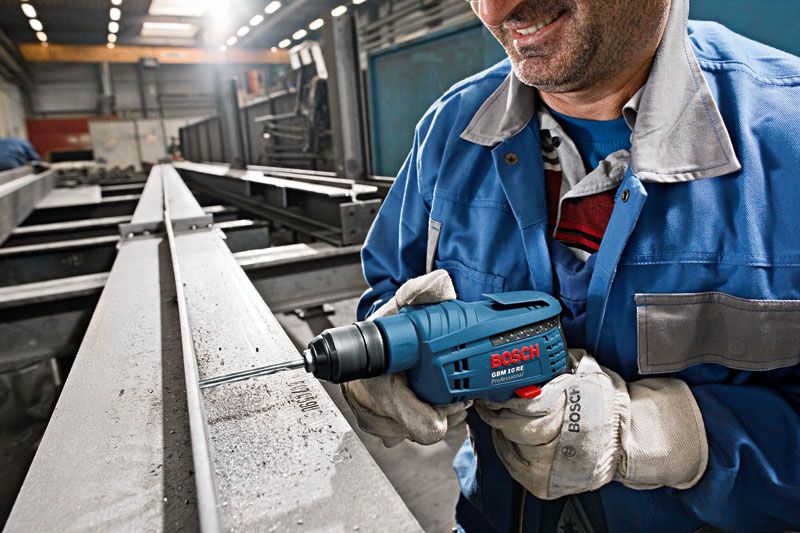

The GBM 10 RE in action!
