Cordless rotary hammers

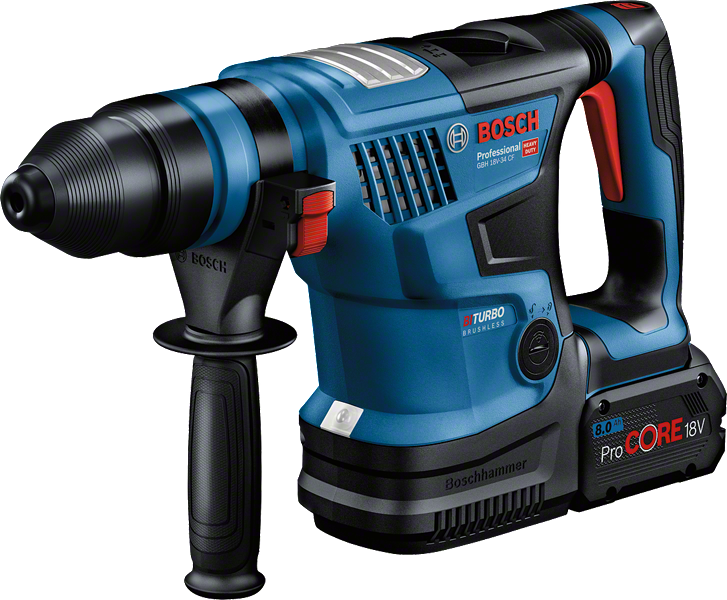

GBH 18V-34 CF Professional

Name: GBH 18V-34 CF
Brand: Bosch power tools
SKU: 0611914082
Availability: InStock

Cordless Rotary Hammer BITURBO with SDS plus

The market´s most powerful cordless SDS plus hammer

Paramount performance with 5.8 J – the most powerful cordless SDS plus hammer in its range for tough jobs in concrete

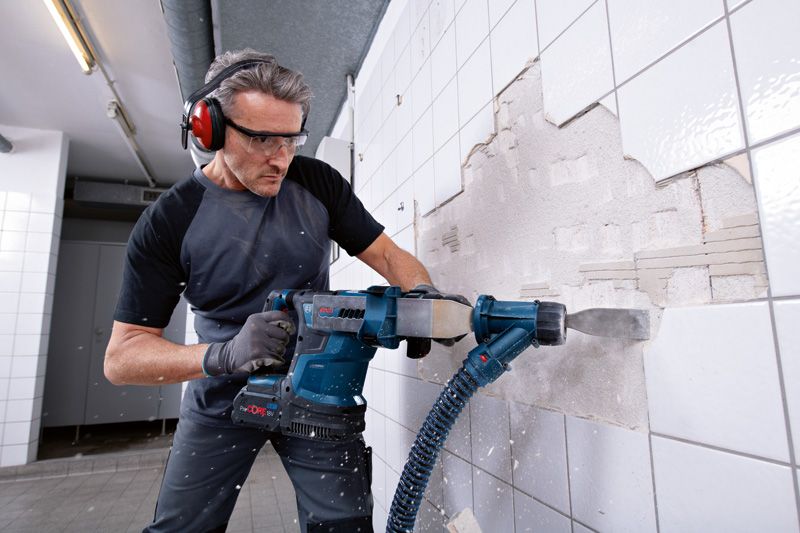

Perfect control – soft start for precise chiselling and 3 different working modes to ensure the right setting for any job
Smartest SDS plus hammer – real-time tool status via user interface, individual adjustments by Bluetooth via Bosch Toolbox app

Functions & key features

Your Selection

with depth stop, Bluetooth module

Show variant

Currently not available online

Check availability on location

Find a local dealer

Your Selected Variant

with depth stop, Bluetooth module 0 611 914 082

Find a local dealer

GBH 18V-34 CF Professional

Your Selection

with depth stop, Bluetooth module

Order number: 0 611 914 082

Find a local dealer

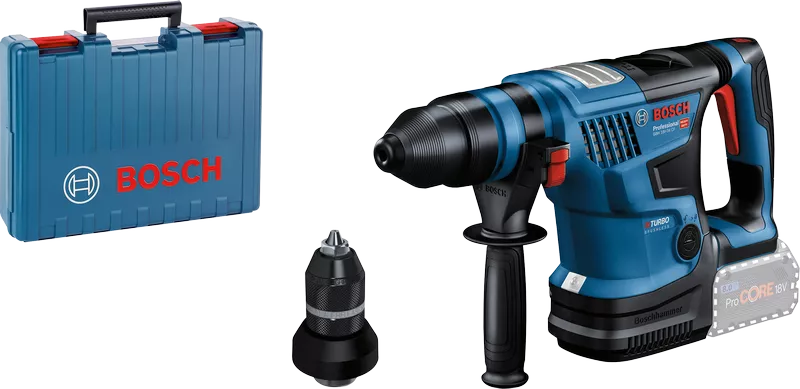

Included in this variant

Depth stop (spare part number 1 613 001 009)
1 x Bluetooth Low Energy module GCY 42 Professional

Order number: 1 600 A01 L2W
Quick-change chuck 1.5 - 13 mm

Order number: 2 608 000 710
SDS plus quick-change chuck

Order number: 2 608 000 704
Carrying case (spare part number 1 605 438 1G2)
Grease tube (spare part number 1 615 430 010)
Auxiliary handle

Order number: 2 608 000 703
Machine cloth (spare part number: 1 619 200 413)

Your selection

Technical data

Additional data
Battery voltage	18.0 V
Impact energy (according to EPTA 05/2016)	5.8 J
Impact rate at rated speed	0 – 2,900 bpm
Rated speed	0 – 500 rpm
Weight excl. battery	4.9 kg
Tool holder	SDS plus

Drilling range
Drilling dia. in concrete with hammer drill bits	8 – 32 mm
Opt. app. range in concrete with hammer drill bits	12 – 30 mm
Max. drilling diameter in metal	13 mm
Max. drilling diameter in wood	40 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	10.9 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	11.7 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	92 dB(A)
Sound power level	103 dB(A)
Uncertainty K	3 dB

Hammer drilling in concrete
Vibration emission value ah	10.9 m/s²
Uncertainty K	1.5 m/s²

Chiselling in concrete
Vibration emission value ah	11.7 m/s²
Uncertainty K	1.5 m/s²

GBH 18V-34 CF Professional: Further information

Product Highlights

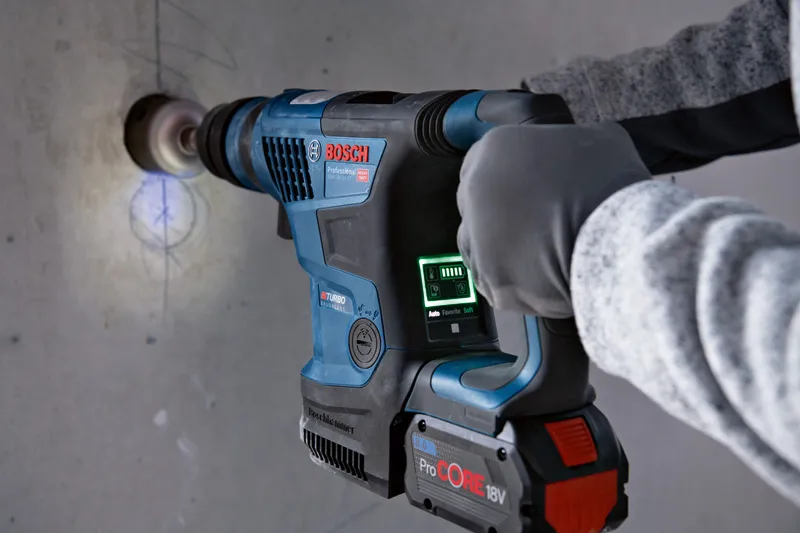

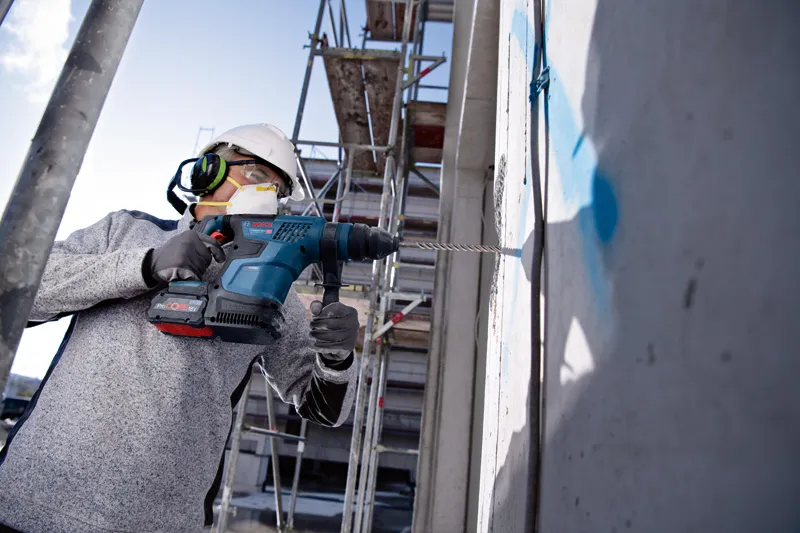

Perfect for demanding jobs in concrete – Bosch´s GBH 18V-34 CF Professional is the most powerful cordless SDS plus hammer, ideal for tough applications. This powerhouse´s BITURBO Brushless technology with ProCORE18V battery delivers an outstanding performance of 5.8 J, making it the most powerful cordless SDS plus hammer in its range.

Equipment & Application

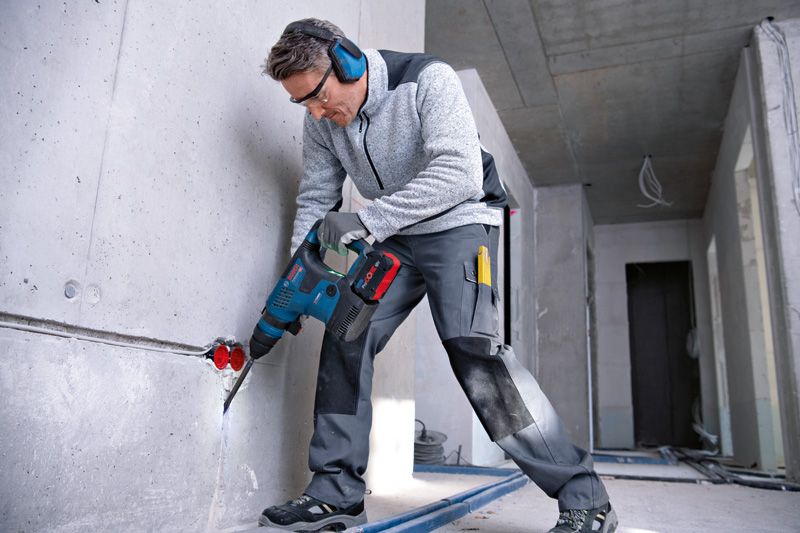

Perfect tool control is ensured by its soft start function for precise chiselling during use and three different working modes (Auto, Favorite, Soft) that provide the right setting for every job.

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
