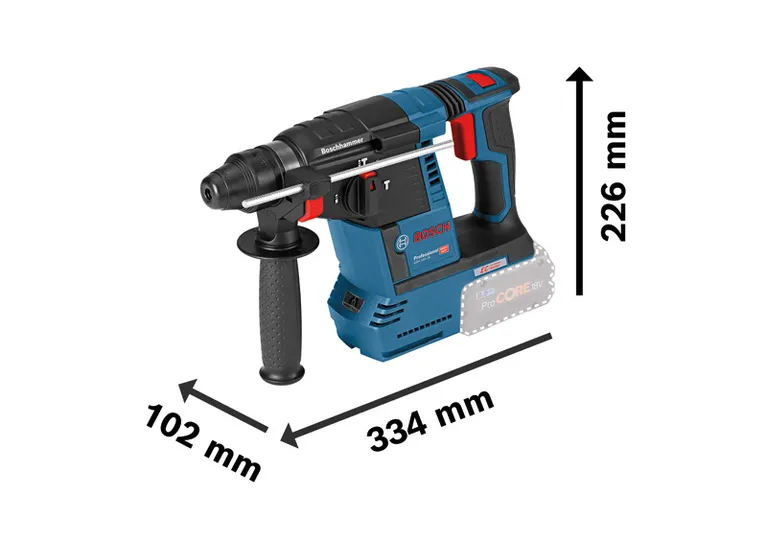

Technical data
| Additional data | |
|---|---|
| Battery voltage* | 18 V |
| Max. impact energy* | 2.6 J |
| Impact rate at rated speed | 0 – 4,350 bpm |
| Rated speed | 0 – 890 rpm |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. in concrete with hammer drill bits* | 4 – 26 mm |
| Opt. app. range in concrete with hammer drill bits | 8 – 16 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 13 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.
Advantages
More power, more comfort and less dust
- 50% more power with the impact force of a corded tool for fast, versatile use (compared to predecessor GBH 18 V-EC)
- Increased user protection with KickBack Control (KBC) and better control with Electronic Precision Control (EPC)
- Drill without dust thanks to the new integrated, optional GDE 18V-16 dust extraction system
Functions
What’s Included in this Package *
in cardboard box with accessory set
Order number:
0 611 909 000
- Auxiliary handle 2 602 025 141
- Cardboard box
- Depth stop 210 mm 1 613 001 010
- Machine cloth
* Battery and charger not included
