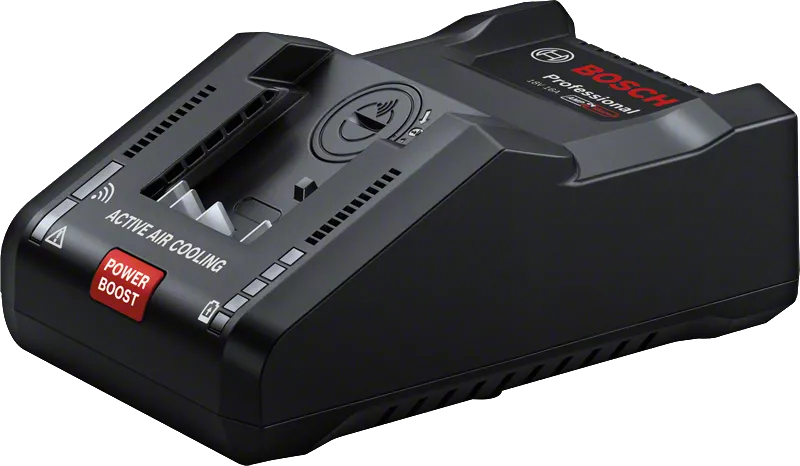

Quick charger GAL 18V-160 C Professional 1 600 A01 9S7
Show less
Show more
Technical data
Additional data
Battery charging voltage
14.4 – 18 V
Charge current
16 A
Weight
0.95 kg

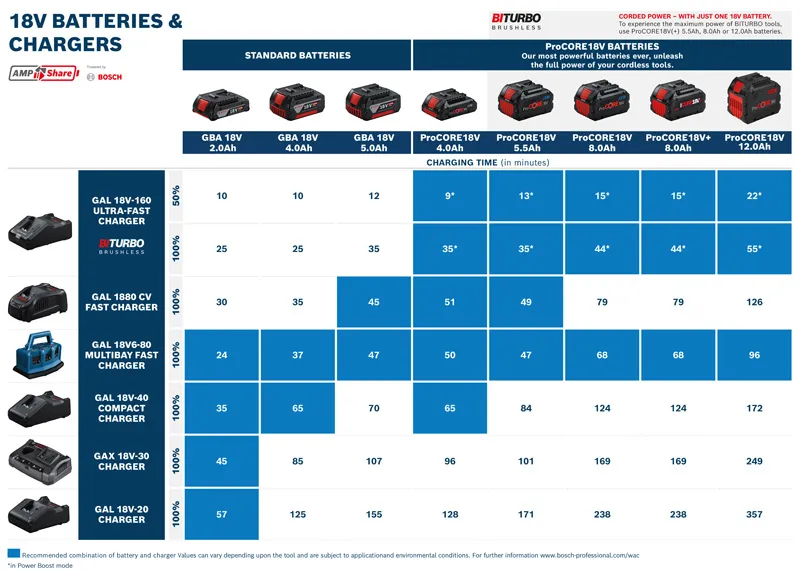

Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.
15/25 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.
24/46 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.
15/25 min

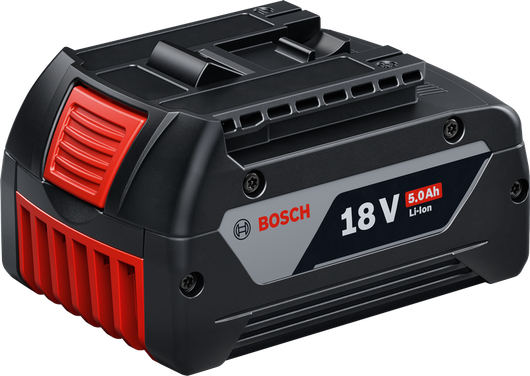

Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.
20/35 min

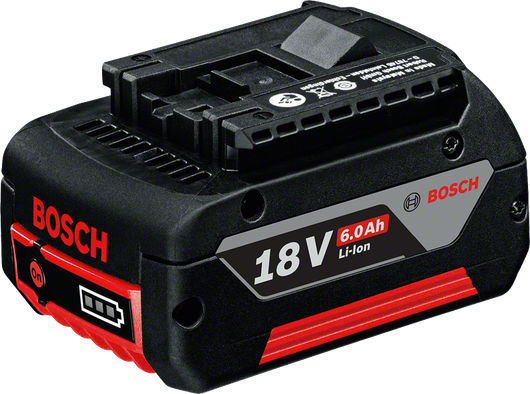

Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.
24/46 min
Charg. time at bat. cap. 6.3 Ah (80%/100%) approx.
24/37 min

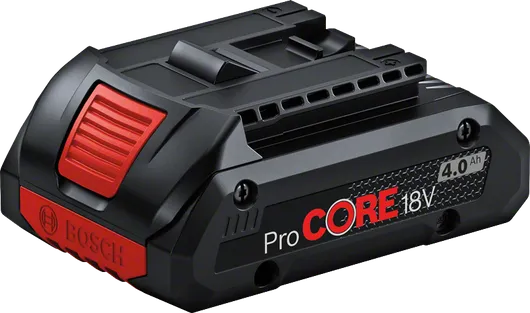

Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.
32/51 min

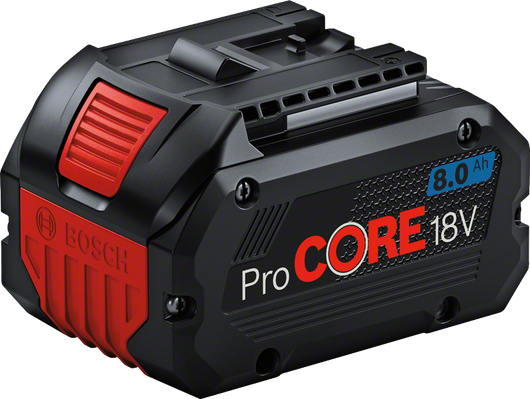

Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.
32/51 min

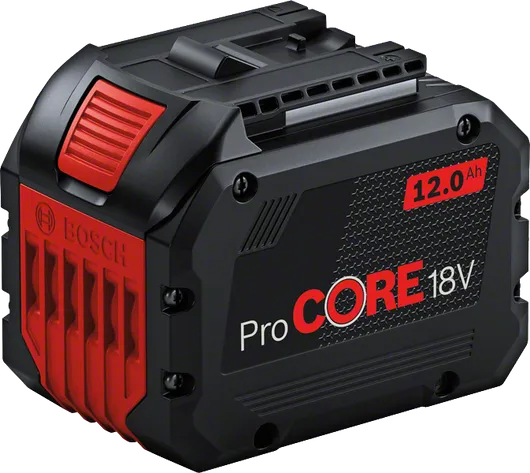

Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.
36/55 min
Power Boost ProCORE18V 4.0Ah (50%/80%) approx.
9/21 min
Power Boost ProCORE18V 8.0 Ah (50%/80%) approx.
15/26 min
GAL 18V-160 C Professional: Further information
Product Highlights
The GAL 18V-160 C Professional is the world’s fastest 18 V charger. With a charging current of 16 amperes, it is incredibly fast, loading a ProCORE18V 8.0 Ah battery to 80% in only 32 minutes. It also is very smart with its Bluetooth Connectivity module. It provides detailed information about battery health and enables control over the charging modes using a smartphone. It is compatible with all Bosch Professional 18 V batteries (Professional 18V System).
Equipment & Application
The GAL 18V-160 C Professional also features 2-fan Active Air Cooling, 5-level charging indicator, Power Boost button, and a Wall Mounting option.
Find the right spare part
Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
Part number
2607226319
Product name
GAL 18V-160 C
Description
Charger
