Technical data
| Additional data | |
|---|---|
| Rated input power* | 2,200 W |
| No-load speed* | 6,500 rpm |
| Disc diameter* | 230 mm |
| Grinding spindle thread | M 14 |
| Main handle | Straight |
| Grinding head, diameter | 140 mm |
| Tool dimensions (width) | 110 mm |
| Tool dimensions (length) | 475 mm |
| Tool dimensions (height) | 140 mm |
| Weight | 5.4 kg |
| Switch | Tri-Control |
| Rubber backing pad, diameter | 180 mm |
| Total vibration values (Surface grinding (roughing)) | |
|---|---|
| Vibration emission value ah | 5.5 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Sanding with sanding sheet) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
Bosch Professional
- High material removal rate
- Low breakdown
- Longer carbon brush lifetime
- Low user fatigue
Functions

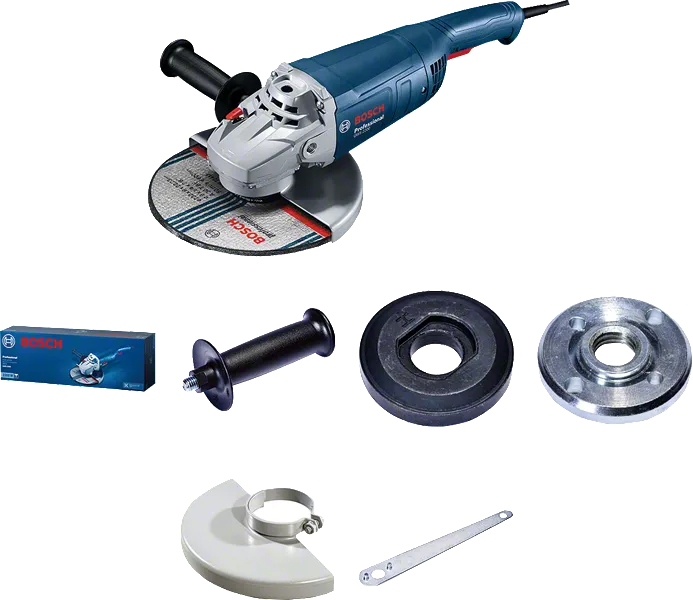

What’s Included in this Package
in cardboard box with nut
Order number:
0 601 8C1 0L0
- Locking nut 1 603 345 043
- Backing flange (spare part number 2 605 703 014)
- Two-hole spanner 1 607 950 061
- Cardboard box
- Protective cover 1 619 P15 622
- Auxiliary handle 1 602 025 030
