Masonry & Concrete Drill Bits
Bosch SDS plus-1 hammer drill bit 8x200x260mm.
Bosch SDS plus-1 8×150×210mm hammer drill bit
Bosch SDS plus-1 hammer drill bit 8x200x260mm.
Bosch SDS plus-1 8×150×210mm hammer drill bit

SDS plus-1 Drill Bit

For rotary hammer drills

SDS plus-1 Drill Bit is optimised for drilling in concrete

  • 2-cutter Tungsten Carbide plate makes the bit extra tough
  • 2-flute U-shape flute design provides effective dust removal and standard lifetime
  • Fits all SDS plus rotary hammers

Materials

Concrete
Lime sand brick
Solid brick
Concrete building block
Hard stone

Select options

Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Select options

Diameter (D) mm 16 options

Working length mm 6 options

Total length mm 6 options

Choose a pack size 1 Pcs

Available product options (40)
SDS plus-1 Drill Bit
For rotary hammer drills

Fits tools of most brands

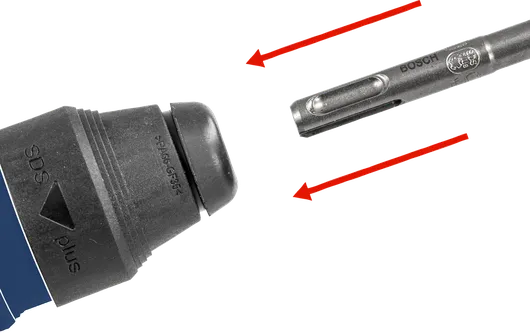

SDS-plus drill bit aligns with a rotary hammer chuck for tool attachment.

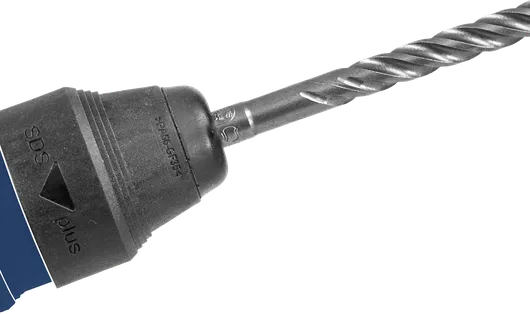

Closeup of a rotary hammer chuck holding a spiral drill bit.
Rotary hammer drill with a spiral bit attached.

Fits all SDS plus rotary hammers

for Drilling Concrete

SDS plus-1 Drill Bit is optimised for drilling in concrete

  • 2-flute U-shape flute design provides effective dust removal and standard lifetime

Product Options

Available product options: 40

Part number Diameter (D) mm Working length mm Total length mm Pack quantity Price

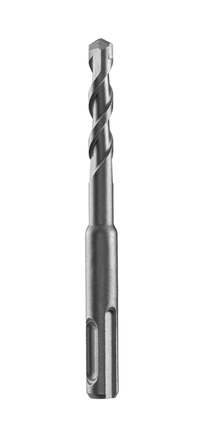

2 608 588 059 13.00 100 160 1 Pcs Find a local dealer
2 608 680 257 4.00 50 110 1 Pcs Find a local dealer

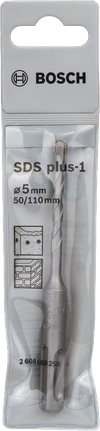

2 608 680 258 5.00 50 110 1 Pcs Find a local dealer
2 608 680 259 5.00 100 160 1 Pcs Find a local dealer
2 608 680 260 5.50 50 110 1 Pcs Find a local dealer
2 608 680 261 5.50 100 160 1 Pcs Find a local dealer
2 608 680 262 6.00 50 110 1 Pcs Find a local dealer
2 608 680 263 6.00 100 160 1 Pcs Find a local dealer
2 608 680 264 6.00 150 210 1 Pcs Find a local dealer
2 608 680 265 6.50 50 110 1 Pcs Find a local dealer
2 608 680 266 6.50 100 160 1 Pcs Find a local dealer
2 608 680 267 7.00 50 110 1 Pcs Find a local dealer
2 608 680 268 7.00 100 160 1 Pcs Find a local dealer

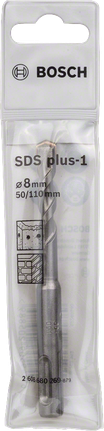

2 608 680 269 8.00 50 110 1 Pcs Find a local dealer
2 608 680 270 8.00 100 160 1 Pcs Find a local dealer
2 608 680 271 8.00 150 210 1 Pcs Find a local dealer
2 608 680 272 8.00 200 260 1 Pcs Find a local dealer
2 608 680 273 10.00 100 160 1 Pcs Find a local dealer
2 608 680 274 10.00 150 210 1 Pcs Find a local dealer
2 608 680 275 10.00 200 260 1 Pcs Find a local dealer
2 608 680 276 10.00 400 460 1 Pcs Find a local dealer
2 608 680 277 12.00 100 160 1 Pcs Find a local dealer
2 608 680 278 12.00 150 210 1 Pcs Find a local dealer
2 608 680 279 12.00 200 260 1 Pcs Find a local dealer
2 608 680 280 12.00 400 460 1 Pcs Find a local dealer
2 608 680 281 14.00 100 160 1 Pcs Find a local dealer
2 608 680 282 14.00 150 210 1 Pcs Find a local dealer
2 608 680 283 14.00 200 260 1 Pcs Find a local dealer
2 608 680 284 14.00 400 460 1 Pcs Find a local dealer
2 608 680 285 16.00 150 210 1 Pcs Find a local dealer
2 608 680 286 16.00 250 310 1 Pcs Find a local dealer
2 608 680 287 16.00 400 460 1 Pcs Find a local dealer
2 608 680 288 18.00 200 260 1 Pcs Find a local dealer
2 608 680 289 18.00 400 460 1 Pcs Find a local dealer
2 608 680 290 20.00 200 260 1 Pcs Find a local dealer
2 608 680 291 20.00 400 460 1 Pcs Find a local dealer
2 608 680 292 22.00 200 260 1 Pcs Find a local dealer
2 608 680 293 22.00 400 460 1 Pcs Find a local dealer
2 608 680 294 25.00 200 260 1 Pcs Find a local dealer
2 608 680 295 25.00 400 460 1 Pcs Find a local dealer
