Drill

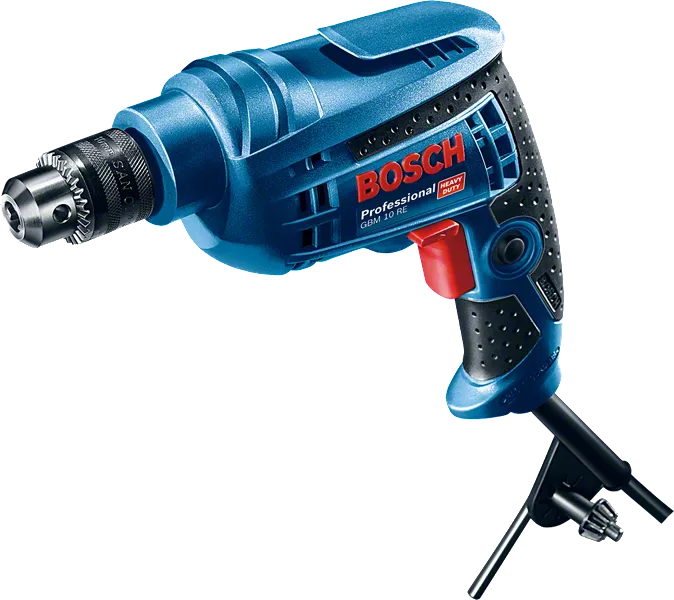

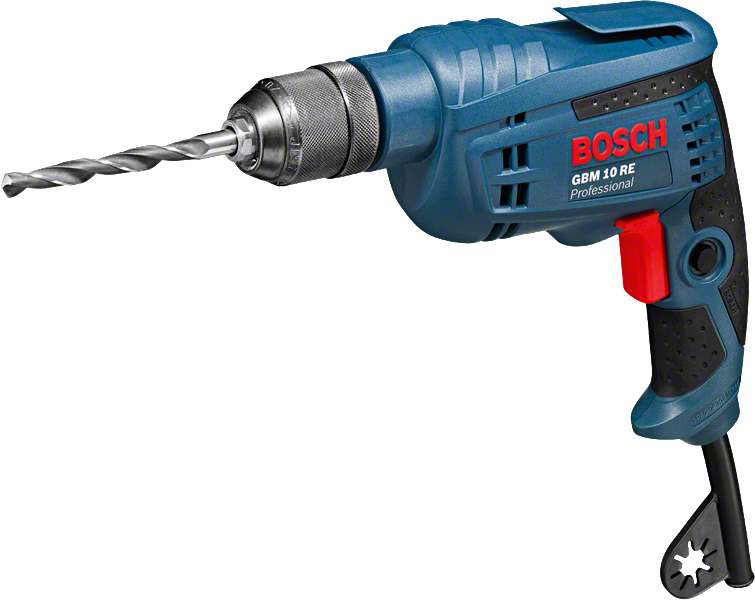

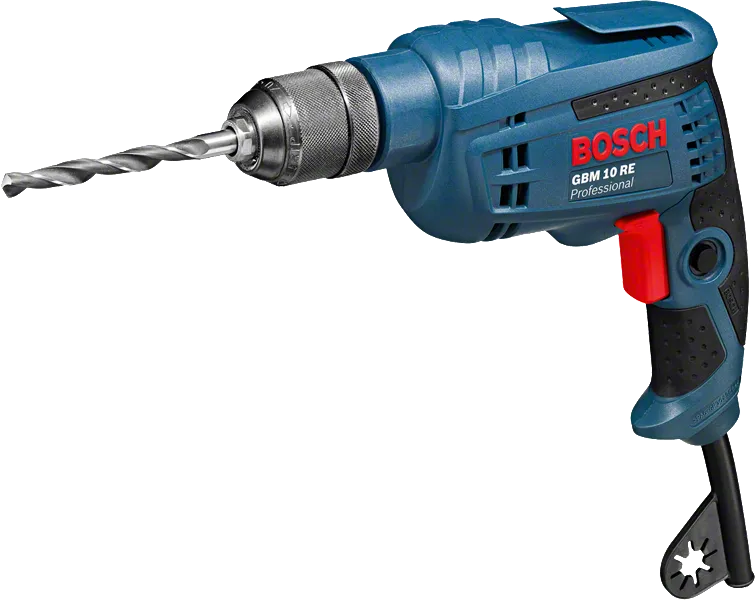

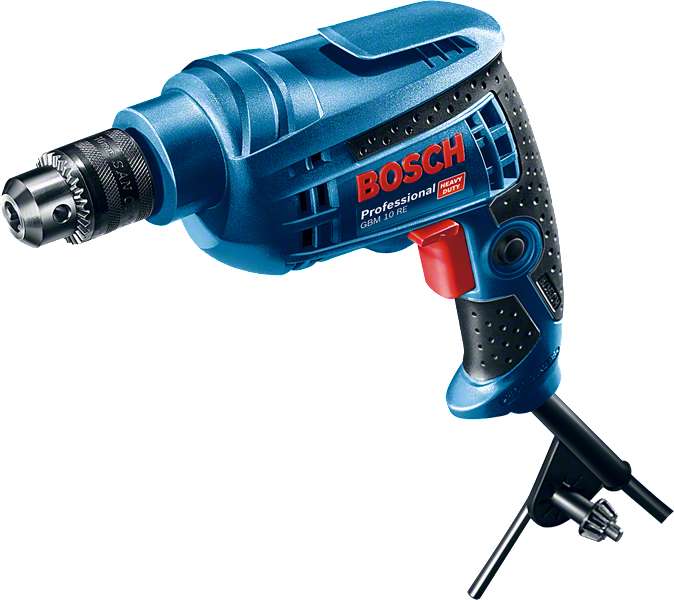

GBM 10 RE Professional

Technical data
Additional data
Rated input power* 450 W
Weight 1.7 kg
No-load speed 0 – 2.600 rpm
Power output 360 W
Rated speed 1.676 rpm
Rated torque 20,0 Nm
Drill spindle connecting thread 3/8"
Chuck capacity, min./max. 1 – 10 mm
Drilling range
Drilling diameter in aluminium 10 mm
Drilling diameter in wood* 25 mm
Drilling diameter in steel* 10 mm
Total vibration values (Drilling in metal)
Vibration emission value ah 4.8 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.8 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 83 dB(A); Sound power level 94 dB(A). Uncertainty K= 3 dB.

What’s Included in this Package
GBM 10 RE Professional
GBM 10 RE Professional
Order number: 0 601 473 5L0
  • Keyed chuck 10 mm 2 608 571 078
The GBM 10 RE in action!
